can u provide command for the same please

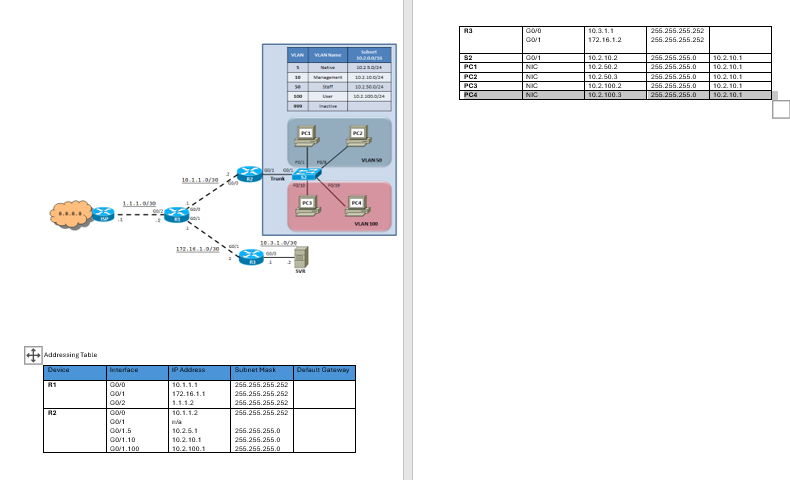

Addressing TableAddressing Table

Device Interface IP Address Subnet Mask Default Gateway

R$1$ G$0/0$

G$0/1$

G$0/210\mathrm{.}1\mathrm{.}1\mathrm{.}1$

$172\mathrm{.}16\mathrm{.}1\mathrm{.}1$

$1\mathrm{.}1\mathrm{.}1\mathrm{.}2255\mathrm{.}255\mathrm{.}255\mathrm{.}252$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}252$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}252$

R$2$ G$0/0$

G$0/1$

G$0/1\mathrm{.}5$

G$0/1\mathrm{.}10$

G$0/1\mathrm{.}10010\mathrm{.}1\mathrm{.}1\mathrm{.}2$

n$/$a

$10\mathrm{.}2\mathrm{.}5\mathrm{.}1$

$10\mathrm{.}2\mathrm{.}10\mathrm{.}1$

$10\mathrm{.}2\mathrm{.}100\mathrm{.}1255\mathrm{.}255\mathrm{.}255\mathrm{.}252$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}0$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}0$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}0$

R$3$ G$0/0$

G$0/1$

$10\mathrm{.}3\mathrm{.}1\mathrm{.}1$

$172\mathrm{.}16\mathrm{.}1\mathrm{.}2$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}252$

$255\mathrm{.}255\mathrm{.}255\mathrm{.}252$

S$2$ G$0/110\mathrm{.}2\mathrm{.}10\mathrm{.}2255\mathrm{.}255\mathrm{.}255\mathrm{.}010\mathrm{.}2\mathrm{.}10\mathrm{.}1$

PC$1$ NIC $10\mathrm{.}2\mathrm{.}50\mathrm{.}2255\mathrm{.}255\mathrm{.}255\mathrm{.}010\mathrm{.}2\mathrm{.}10\mathrm{.}1$

PC$2$ NIC $10\mathrm{.}2\mathrm{.}50\mathrm{.}3255\mathrm{.}255\mathrm{.}255\mathrm{.}010\mathrm{.}2\mathrm{.}10\mathrm{.}1$

PC$3$ NIC $10\mathrm{.}2\mathrm{.}100\mathrm{.}2255\mathrm{.}255\mathrm{.}255\mathrm{.}010\mathrm{.}2\mathrm{.}10\mathrm{.}1$

PC$4$ NIC $10\mathrm{.}2\mathrm{.}100\mathrm{.}3255\mathrm{.}255\mathrm{.}255\mathrm{.}010\mathrm{.}2\mathrm{.}10\mathrm{.}1$

Review Logical Topology and table document

IMPORTANT: ISP router has been pre$-$configured you do not need to do any configurations

R$1,$ R$2,$ & R$3$ have been pre$-$configured with NAT and RIP which is a routable protocol$-$

DO Not remove

Tasks $(-2/$ mistake$)$ Marks

On S$2,$ configure VLANs and the Management SVI.

$$ Configure and name the VLANs as indicated in the topology diagram.

$$ Assign the management IP address VLAN $1010\mathrm{.}2\mathrm{.}10\mathrm{.}2/24$ and configure its default gateway $(10\mathrm{.}2\mathrm{.}10\mathrm{.}1)./8$

On S$2,$ configure interfaces.

$$ Interfaces F$0/1$ through F$0/9$ should be access ports, assigned to VLAN $50.$

$$ Interfaces F$0/10$ through F$0/19$ should be access ports, assigned to VLAN $100.$

$$ Interfaces F$0/20$ F$0/24$ and G$0/2$ should be access ports, assigned to VLAN $999,$ and disabled. $/10$

On S$2,$ configure port security

$$ Enable port security on F$0/1$ through F$0/19.$

$$ Connect a maximum of $2$ MAC addresses.

$$ Secure the ports so that the MAC address of a device is dynamically learned and added to the running configuration.

$$ Set the port security violation to Restrict

On S$2,$ configure trunking

$$ Configure VLAN $5$ as the native VLAN for G$0/1$

On S$2,$ configure DHCP snooping $$

$$ Enable DCHP snooping for Vlans $5,10,50,100$

On S$2,$ set the domain name and generate secure keys

$$ Configure the domain name to netacad.pka

$$ Secure keys needed to encrypt data, generate the RSA keys using $1024$

On S$2,$ create an SSH user and reconfigure for the VTY lines for SSH$-$only access

$$ Create an administrator user with cisco as the secret password

$$ Configure VTY lines to check the local username database for login credentials and to only allow SSH for remote access $/25$

On R$2$ and S$2,$ configure Router$-$on$-$a$-$Stick Inter$-$VLAN routing

$$ Configure R$2$ inter$-$VLAN routing for VLANs $5($native$),10,50,$ and $100$ using $802\mathrm{.}1$Q links. $$

$$ Configure S$2$ G$0/1$ to support inter$-$VLAN routing trunking using VLAN $5$ as the native VLAN. $/10$

On R$2,$ enable DHCP services. $-12$ marks $($NOTE: Do not use DHCP Relay agent, it is not necessary for this topology$).$

$$ Create two DHCP pools called STAFF$-$POOL and USER$-$POOL be exact for the names.$$

$$ Assign network address, subnet mask, and default gateway for the Staff and User VLANs. $($refer to VLAN subnets IP addressing in the VLAN table on $1$st page$)$

$$ Exclude the first $6$ addresses of each pool. $$

$$ PC$1$ and PC$2$ should get a VLAN $50$ IP address IP configuration. $$

$$ PC$3$ and PC$4$ should get a VLAN $100$ IP address IP configuration.$/12$

On R$1,$ R$2,$ R$3,$ and SVR$,$ configure interfaces.

$$ Interfaces must be configured accurately and active as identified in the logical topology.

$$ Ping directly connected interfaces. $/4$

On R$1,$ R$2,$ R$3,$ and S$2,$ configure management features. $($no need to configure Line console $0)$

$$ Assign class as the privileged EXEC encrypted password.

$$ Create a banner warning that $$Unauthorized access is prohibited$$ be exact for this text input. $/6$

Verify Connectivity

$$ All PCs and SVR should be able to reach $8\mathrm{.}8\mathrm{.}8\mathrm{.}8$
