Can you please design and simulate using logisim or can you draw it so I can emulate it on logisim myself

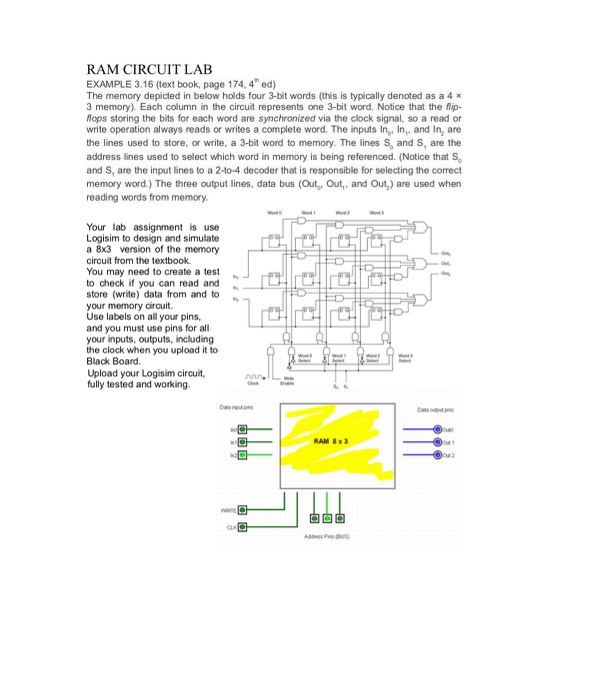

RAM CIRCUIT LAB EXAMPLE 3.16 (text book, page 174, 4 ed) The memory depicted in below holds four 3-bit words (this is typically denoted as a 4 x 3 memory). Each column in the circuit represents one 3-bit word. Notice that the flip- fops storing the bits for each word are synchronized via the clock signal, so a read or write operation always reads or writes a complete word. The inputs Ino, In, and In, are the lines used to store, or write, a 3-bit word to memory. The lines S, and S, are the address lines used to select which word in memory is being referenced. (Notice that S and S, are the input lines to a 2-t0-4 decoder that is responsible for selecting the correct memory word.) The three output lines, data bus (Outo, Out,, and Out) are used when reading words from memory. Your lab assignment is use Logisim to design and simulate a 8x3 version of the memory circuit from the textbook You may need to create a test to check if you can read and store (write) data from and to . your memory circuit. Use labels on all your pins, and you must use pins for all your inputs, outputs, including the clock when you upload it to Black Board. Upload your Logisim circuit, fully tested and working RAM 83
