$[$ Chapter $3-$ Orthograpnic

Exercise $3\mathrm{.}7-2$: Missing lines $2$

Name:

Date:

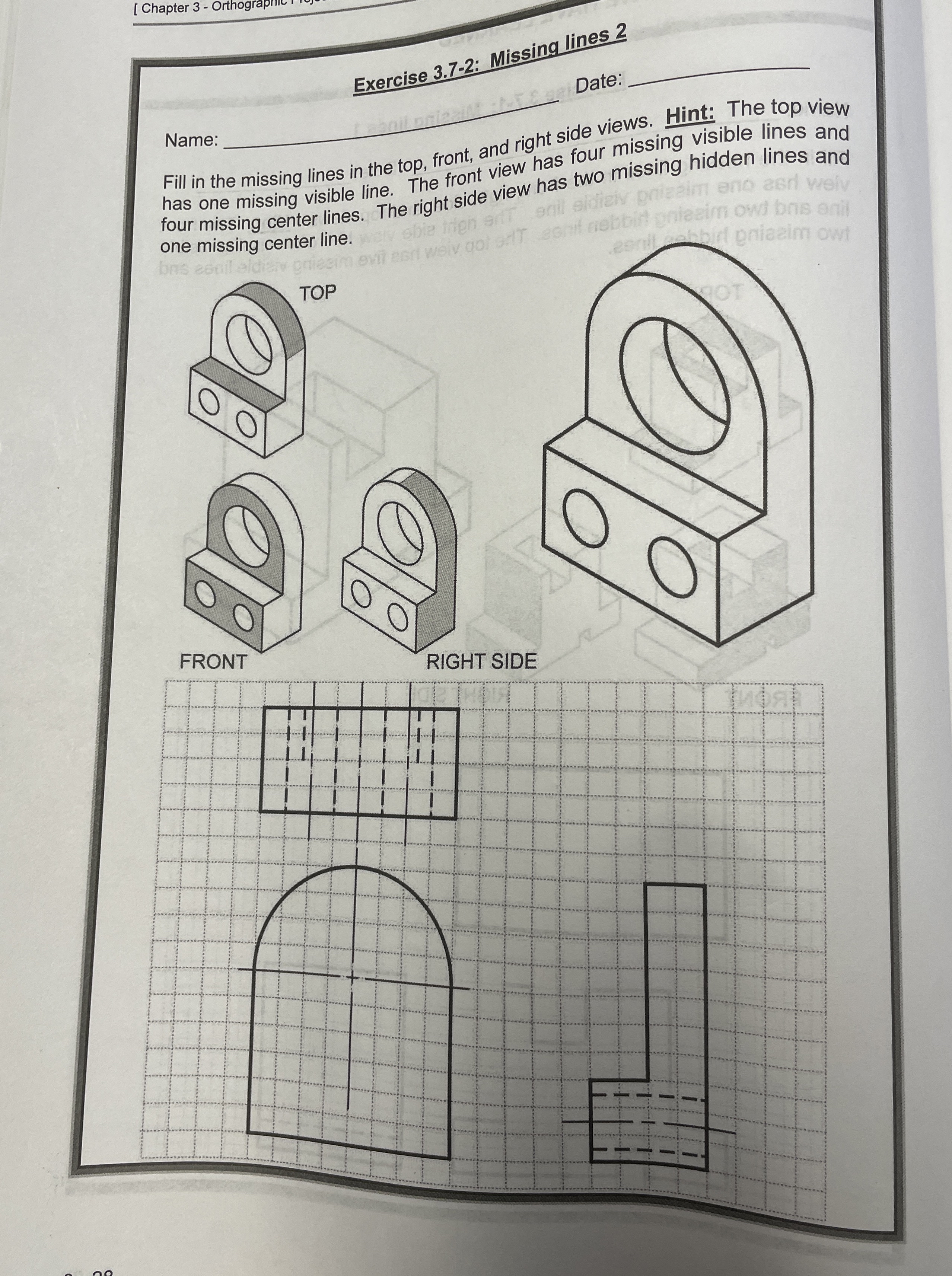

Fill in the missing lines in the top, front, and right side views. Hint: The top view has one missing visible line. The front view has four missing visible lines and four missing center lines. The right side view has two missing hidden lines and one missing center line.

FRONT
