Question: Chapter 6 ( Truss ) State in each truss shown below whether it is statically determinate or indeterminate and stable or unstable then determine zero

Chapter 6(Truss)

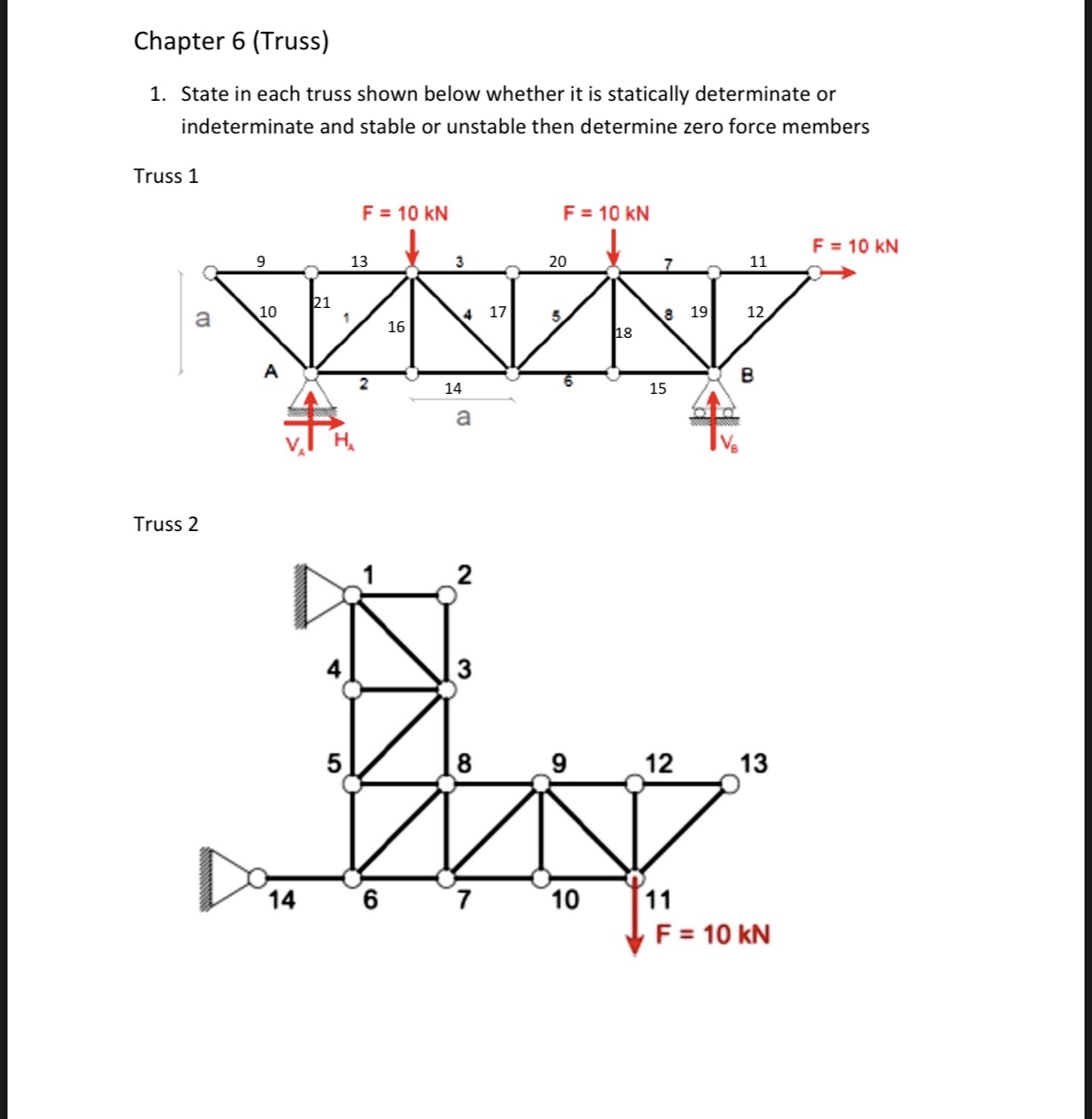

State in each truss shown below whether it is statically determinate or indeterminate and stable or unstable then determine zero force members
Truss 2
Chapter 6 ( Truss ) State in each truss shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

For the truss shown below A B B C A ) Draw the necessary free body diagram ( s ) ( 6 points ) B ) The truss shown is externally ( 1 point ) i . determinate and stable ii . indeterminate and stable...

Q:

CoURGENT PLEASE Cnsider the truss shown. The truss is supported by a pin at A which has a support force with a y - component of 4 1 . 5 k N upwards and an x - component of 0 k N , and a roller at H...

Q:

The loads on a Gambrel roof truss as estimated as shown in the figure below. A load of 1 2 5 N is applied to truss joints F , G , and H ; a load of 1 2 5 2 N is applied to truss joints A and E ; and...

Q:

PLEASE PROVIDE THE FBDs for solving this: The loads on a Gambrel roof truss as estimated as shown in the figure below. A load of 1 2 5 N is applied to truss joints F , G , and H ; a load of 1 2 5 2 N...

Q:

A basketball player throws a ball with an initial velocity of 6 . 5 m s , at an angle of 5 0 to the horizontal. The ball is 2 . 3 m above the ground when released and travels a horizontal distance of...

Q:

Question 5 / Vraag 5 ( A 1 - 2 0 2 2 ) Consider the truss shown in the figure. The truss is pin - supported at A and roller supported at B . Show all calculations and free - body diagrams. Determine...

Q:

Chapter 9Punishment and Sentencing MULTIPLE CHOICE 1. Which of the following is NOT one of the four basic philosophical reasons for sentencing? a. Deterrence b. Incapacitation c. Retribution d....

Q:

The number of members in a perfect frame having J number of joint is equal to - A . 2 J - 1 B . 3 J - 2 C . 2 J - 3 D . 2 J - 2 For the truss shown in the figure, the force in the member Q R is Show...

Q:

Classify each of thee trusses in fig. 1 as stable, unstable, statically determinate, or statically indeterminate. Determine the force in each member of thee roof truss shown in Fig. 2 . State whether...

Q:

For the truss shown in the figure, the force in the member Q R is Show calculation. A . zero B . P 2 2 C . P D . P 2 If 2 j > ( m + r ) in a plane truss, the truss is: A . Stable B . Unstable C ....
