PLEASE PROVIDE THE FBDs for solving this:

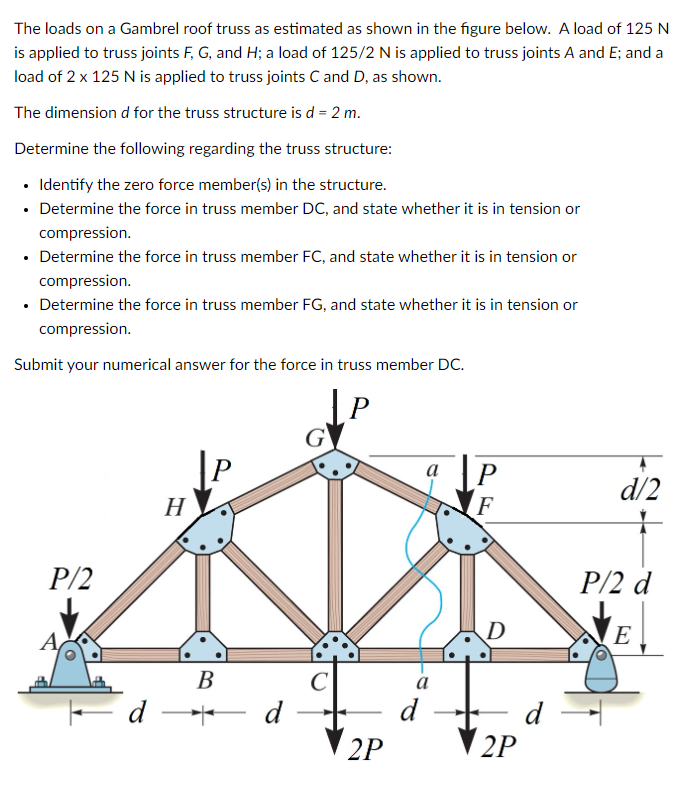

The loads on a Gambrel roof truss as estimated as shown in the figure below. A load of $125N$

is applied to truss joints F$,$ G$,$ and $H$; a load of $\frac{125}{2}N$ is applied to truss joints A and $E$; and a

load of $2125N$ is applied to truss joints $C$ and $D,$ as shown.

The dimension $d$ for the truss structure is $d=2m.$

Determine the following regarding the truss structure:

Identify the zero force member$($s$)$ in the structure.

Determine the force in truss member DC$,$ and state whether it is in tension or

compression.

Determine the force in truss member FC$,$ and state whether it is in tension or

compression.

Determine the force in truss member FG$,$ and state whether it is in tension or

compression.

Submit your numerical answer for the force in truss member DC$.$
