Chapter - Project Management

This assignment involves creating a Gantt chart using the GanttProject software.

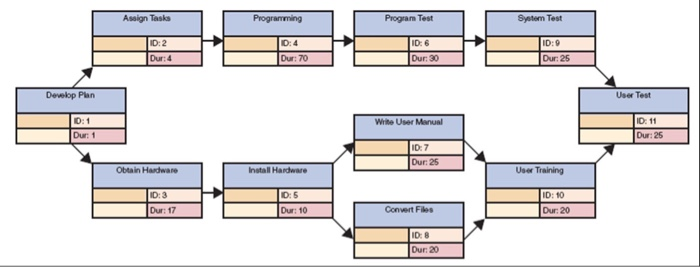

1) Use the attached example task list to create a new Gantt chart. Make sure you indicate the task dependencies from the task list. Use the IDs assigned by the site, not the ones in the example.

2) Add two new tasks: the 1st between "Programming" and "Program Test" called "Code Review" with duration 3 days, and the 2nd between Write User Manual and User Training called User Manual Review with duration 2 days.

3) Identify all the tasks in the critical path for the project by coloring those items red.

4) Export your Gantt file (.gan) from GanttProject .

Assign Tasks Program Test System Test ID: 2 D:4 ID: 6 ID:9 Dur:4 Dur: 70 Dur: 30 Dur: 25 Develop Plan User Test Write User Manual Dur: 1 Dur:25 ID: 7 Dur: 25 Obtain Hardware Install Hardware User Training ID:3 D: 5 ID: 10 Dur: 17 Dur: 10 Convert Fles Dur: 20 ID: 8 Dur: 20
