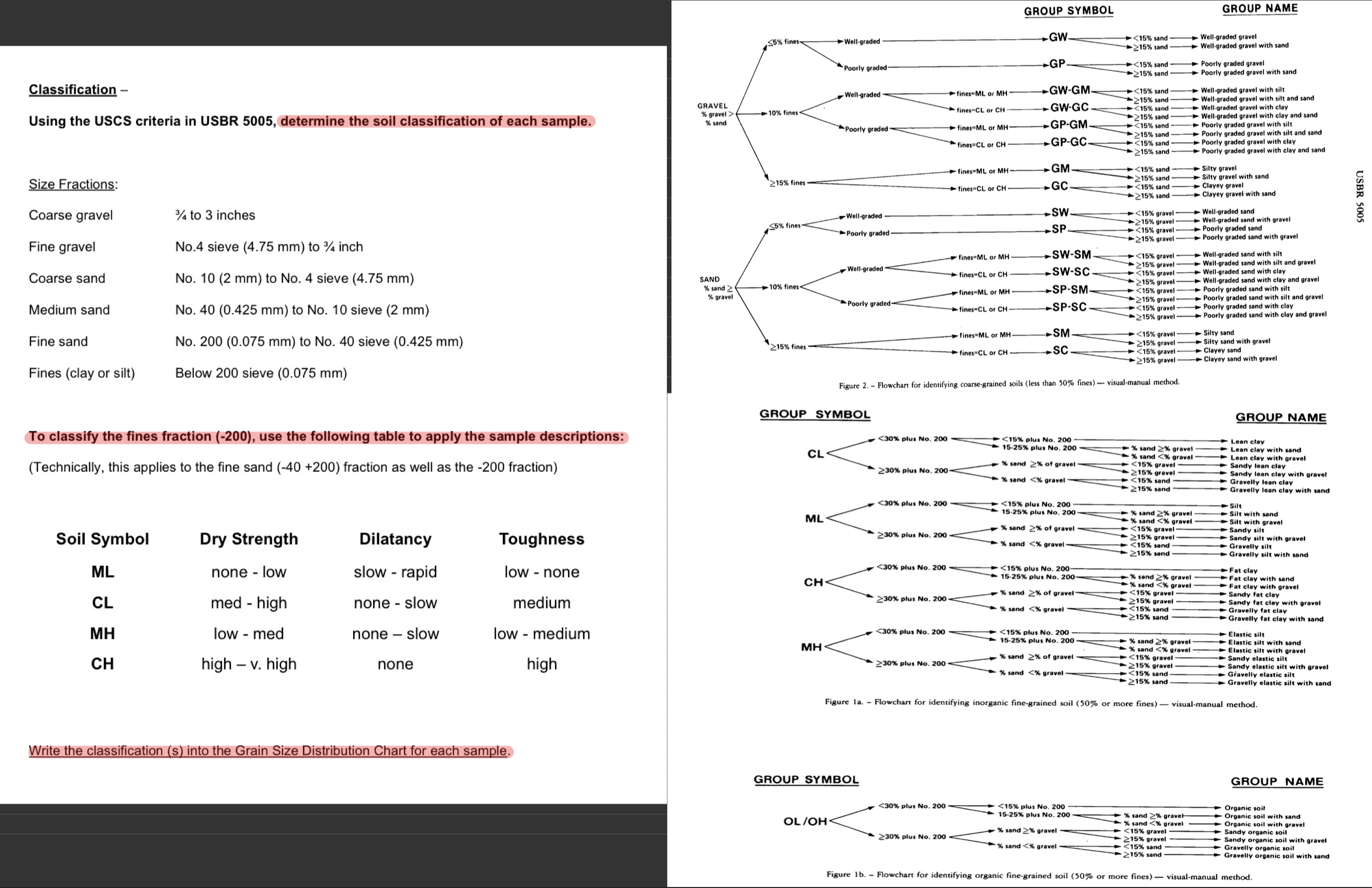

Classification $-$

Using the USCS criteria in USBR $5005,$ determine the soil classification of each sample.

Size Fractions:

Coarse gravel

$\frac{3}{4}$ to $3$ inches

Fine gravel

No$.4$ sieve $(4\mathrm{.}75mm)$ to $\frac{3}{4}$ inch

Coarse sand

No$.10(2$ mm $)$ to No$.4$ sieve $(4\mathrm{.}75$ mm $)$

Medium sand

No$.40(0\mathrm{.}425$ mm $)$ to No$.10$ sieve $(2$ mm $)$

Fine sand

No$.200(0\mathrm{.}075$ mm $)$ to No$.40$ sieve $(0\mathrm{.}425mm)$

Fines $($clay or silt$)$

Below $200$ sieve $(0\mathrm{.}075mm)$

GROUP NAME

Figure $2.-$ Flowchart for identifying coarse$-$grained soils $($less than $50\%$ fines$)-$ visual$-$manual method.

GROUP SYMBOL

Figure $1$a$.-$ Flowchart for identifying inorganic fine$-$grained soil $(50\%$ or more fines$)-$ visual$-$manual method.

Write the classification $($s$)$ into the Grain Size Distribution Chart for each sample.

GROUP SYMBOL

GROUP NAME

Figure $1$b$.-$ Flowchart for identifying organic fine$-$grained soil $(50\%$ or more fines$)-$ visual$-$manual method.
