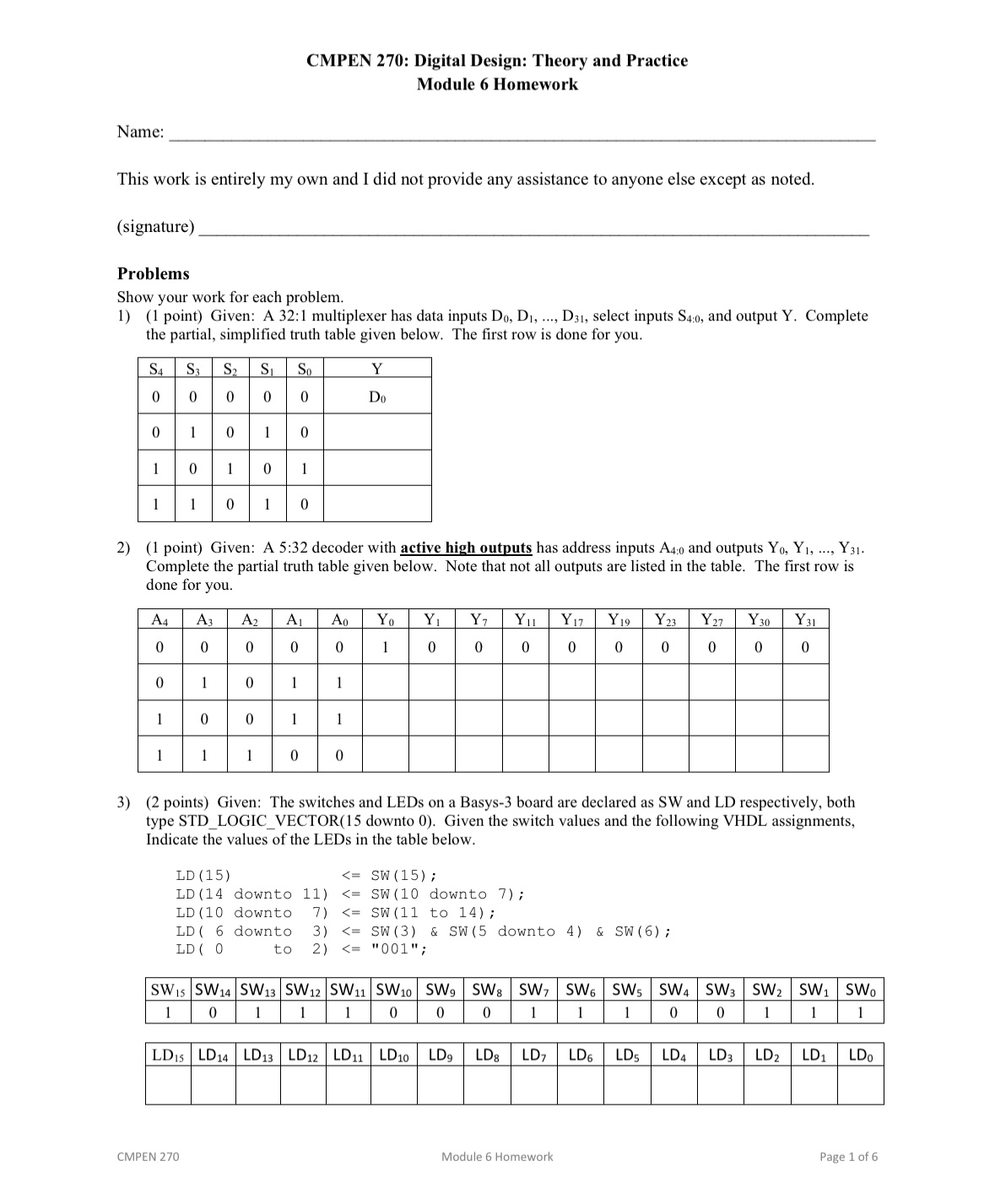

CMPEN $270$: Digital Design: Theory and Practice

Module $6$ Homework

Name:

This work is entirely my own and I did not provide any assistance to anyone else except as noted.

$($signature$)$

Problems

Show your work for each problem.

$(1$ point$)$ Given: A $32$:$1$ multiplexer has data inputs $D_0,D_1,$dots,$D_{31},$ select inputs $S_{4\text{:}0},$ and output $Y.$ Complete the partial, simplified truth table given below. The first row is done for you.

$\backslash$table$[[S_4,S_3,S_2,S_1,S_0,Y$
