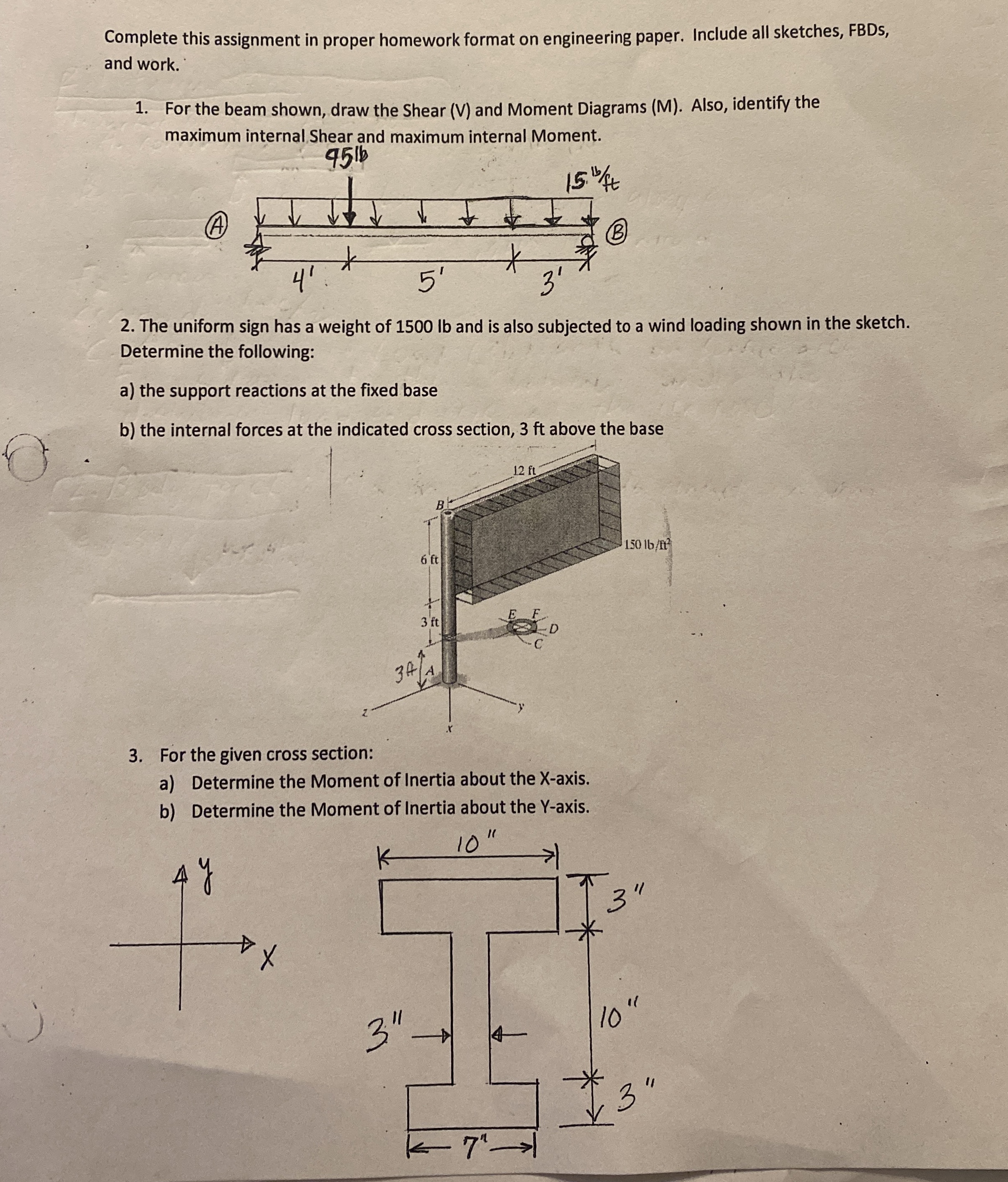

Complete this assignment in proper homework format on engineering paper. Include all sketches, FBDs$,$ and work.

For the beam shown, draw the Shear $($V$)$ and Moment Diagrams $($M$).$ Also, identify the maximum internal Shear and maximum internal Moment.

The uniform sign has a weight of $1500$ lb and is also subjected to a wind loading shown in the sketch. Determine the following:

a$)$ the support reactions at the fixed base

b$)$ the internal forces at the indicated cross section, $3$ ft above the base

For the given cross section:

a$)$ Determine the Moment of Inertia about the $x-$axis.

b$)$ Determine the Moment of Inertia about the $Y-$axis.
