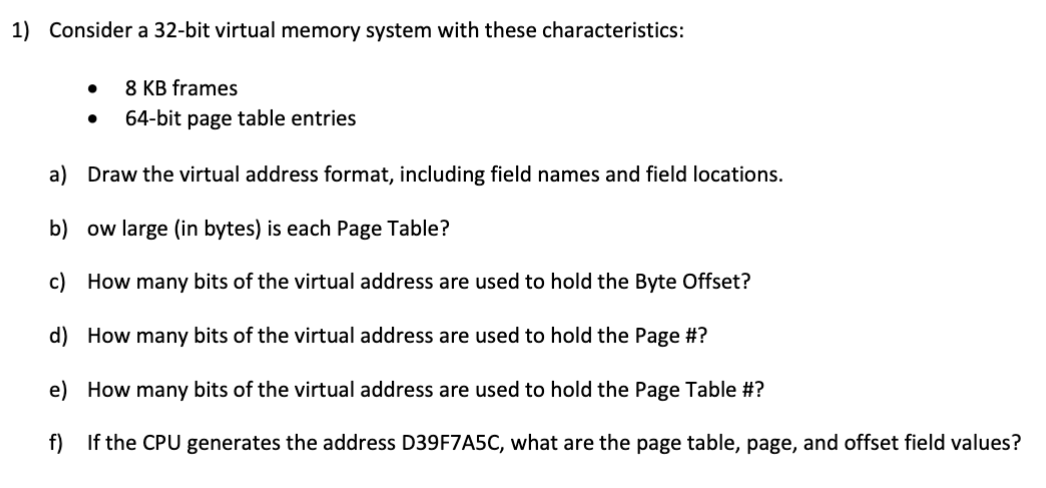

Consider a $32-$bit virtual memory system with these characteristics:

$8$ KB frames

$64-$bit page table entries

a$)$ Draw the virtual address format, including field names and field locations.

b$)$ How large $($in bytes$)$ is each Page Table?

c$)$ How many bits of the virtual address are used to hold the Byte Offset?

d$)$ How many bits of the virtual address are used to hold the Page #$?$

e$)$ How many bits of the virtual address are used to hold the Page Table #$?$

f$)$ If the CPU generates the address D$39$F$7$A$5$C$,$ what are the page table, page, and offset field values?
