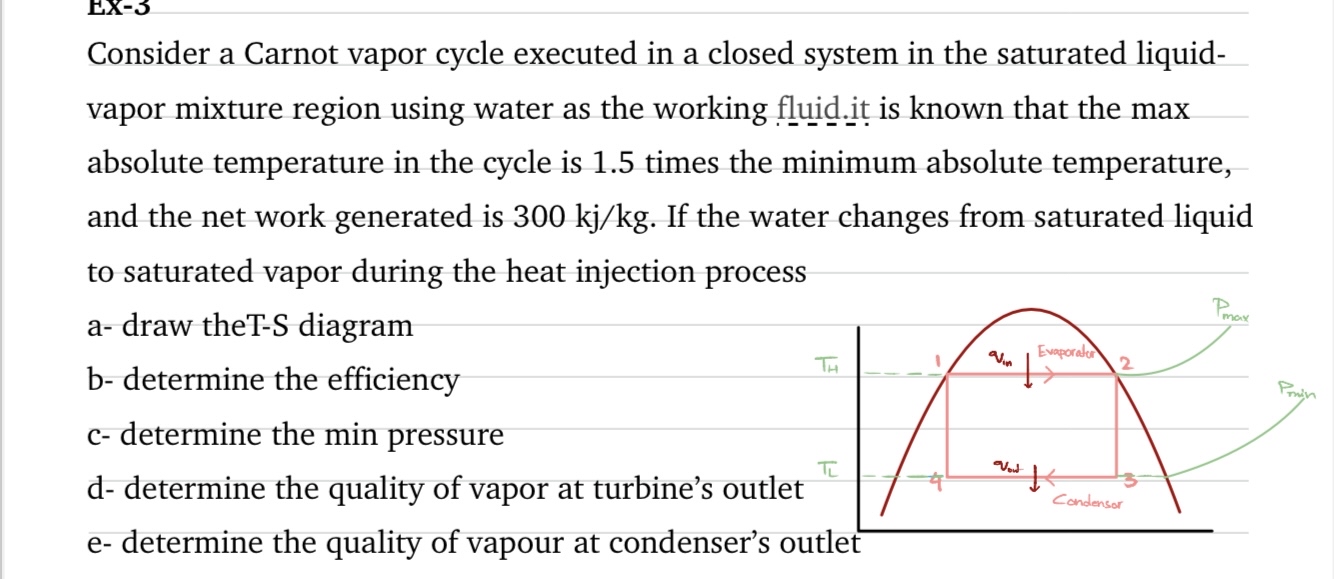

Consider a Carnot vapor cycle executed in a closed system in the saturated liquidvapor mixture region using water as the working

fluid.it is known that the max absolute temperature in the cycle is $1\mathrm{.}5$ times the minimum absolute temperature, and the net work generated is $300k\frac{j}{k}g.$ If the water changes from saturated liquid to saturated vapor during the heat injection process

a$-$ draw theT$-$S diagram

b$-$ determine the efficiency

c $-$ determine the min pressure

d$-$ determine the quality of vapor at turbine's outlet

e$-$ determine the quality of vapour at condenser's outlet
