Question: Consider a two - stage Miller compensated amplifier as shown below. The amplifier has a load capacitance of C L = 1 p F ,

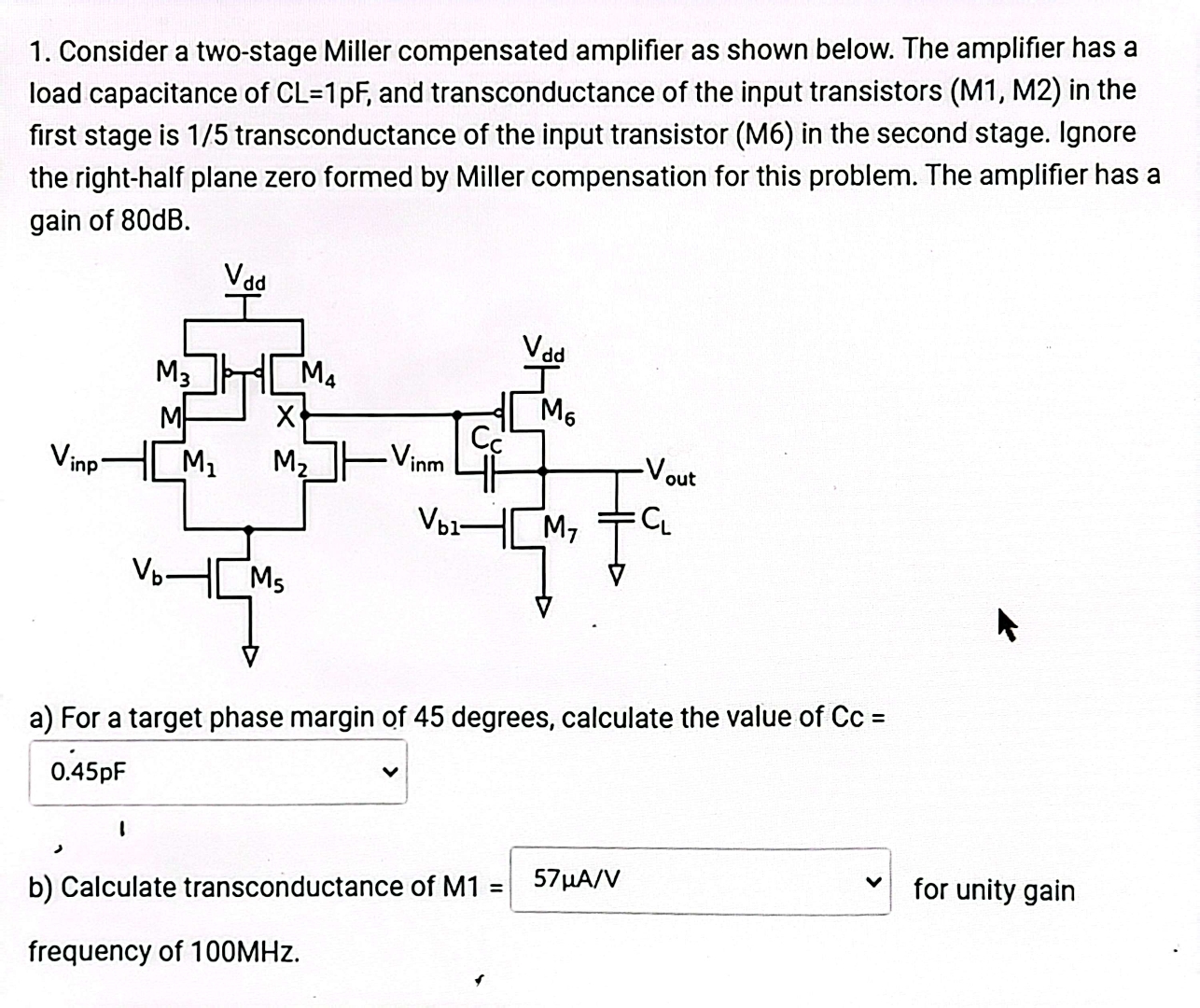

Consider a two-stage Miller compensated amplifier as shown below. The amplifier has a load capacitance of CL=1pF, and transconductance of the input transistors (M1, M2) in the first stage is 15 transconductance of the input transistor (M6) in the second stage. Ignore the right-half plane zero formed by Miller compensation for this problem. The amplifier has a gain of 80 dB .
a) For a target phase margin of 45 degrees, calculate the value of Cc=
b) Calculate transconductance of M1= for unity gain frequency of 100 MHz .
