Question: Consider the beam shown in ( Figure 1 ) . Suppose w = 5 0 k N m and P = 6 0 k N

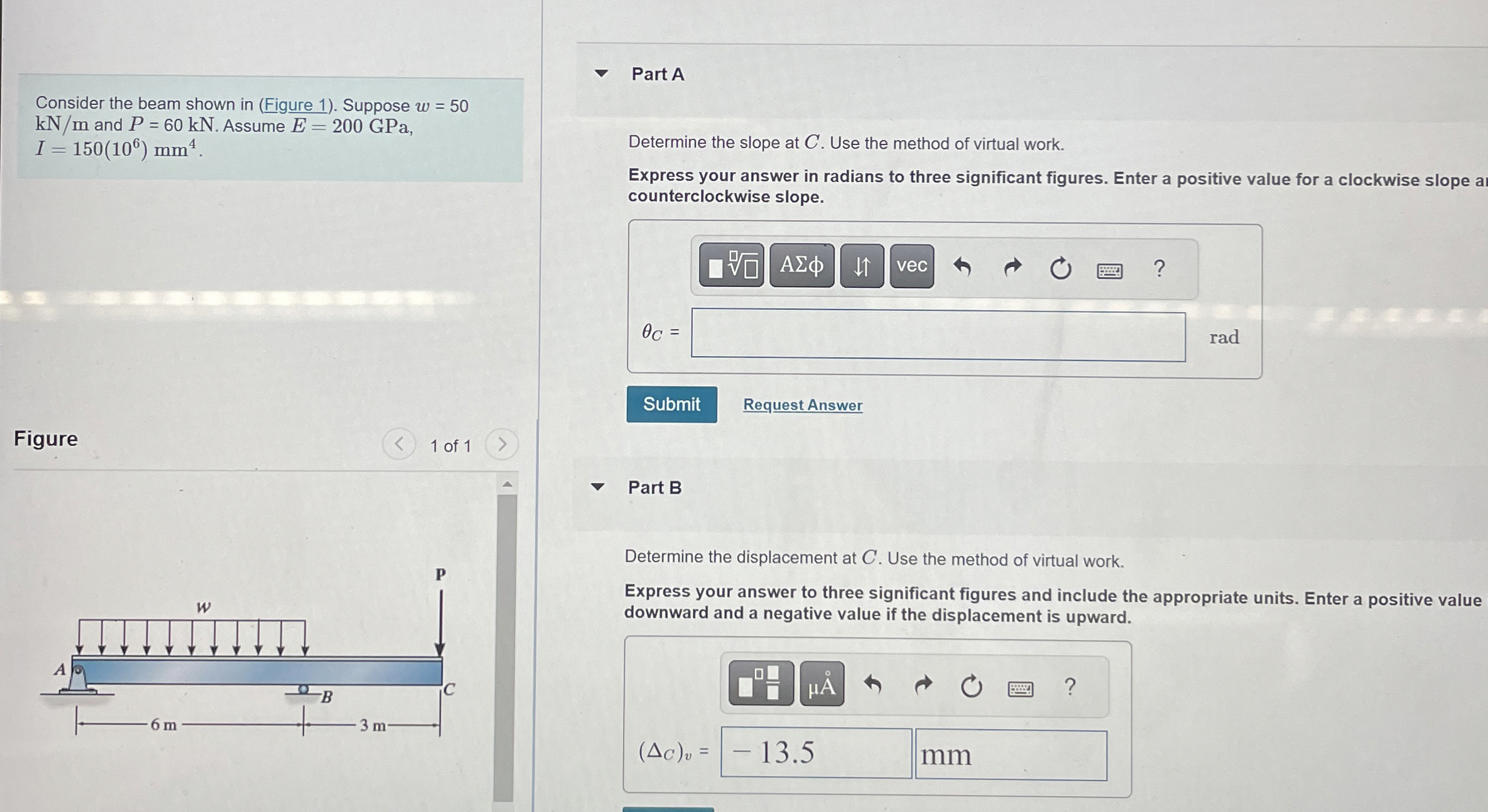

Consider the beam shown in

(

Figure

1) .

Suppose

w = 50 k \frac{N}{m}

and

P = 60 k N .

Assume

E = 200

GPa,

I = 150 (10^{6}) m m^{4} .

Figure

1

1

_{C} =

Request Answer

rad

Part B

Determine the displacement at

C .

Use the method of virtual work.

Express your answer to three significant figures and include the appropriate units. Enter a positive value downward and a negative value if the displacement is upward.

(_{C})_{v} =

Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
