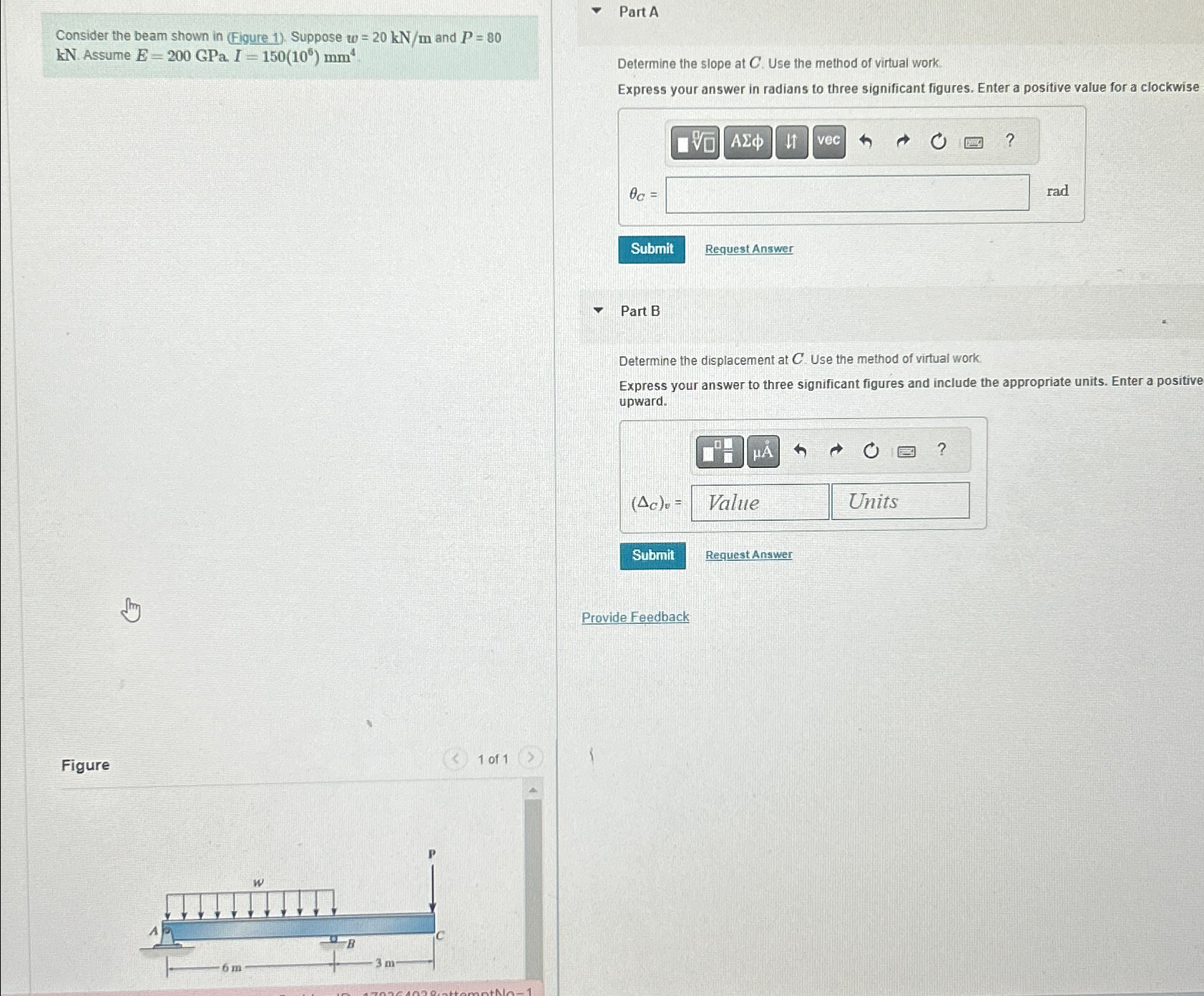

Question: Consider the beam shown in ( Figure 1 ) . Suppose w = 2 0 k N m and P = 8 0 k N

Consider the beam shown in (Figure 1). Suppose w=20kNm and P=80kN. Assume E=200GPaI=150(106)mm4.
Part A
Determine the slope at C. Use the method of virtual work.
Express your answer in radians to three significant figures. Enter a positive value for a clockwise
C=prodrad
Request Answer
Part B
Determine the displacement at C. Use the method of virtual work.
Express your answer to three significant figures and include the appropriate units. Enter a positive upward.
Request Answer
Provide Feedback
Figure
1 of 1
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
