Question: Consider the beam shown in ( Figure 1 ) . Suppose that w = 2 . 5 k f t and assume E I is

Consider the beam shown in (Figure 1). Suppose that w=2.5kft and assume EI is
constant
Figure
Part A

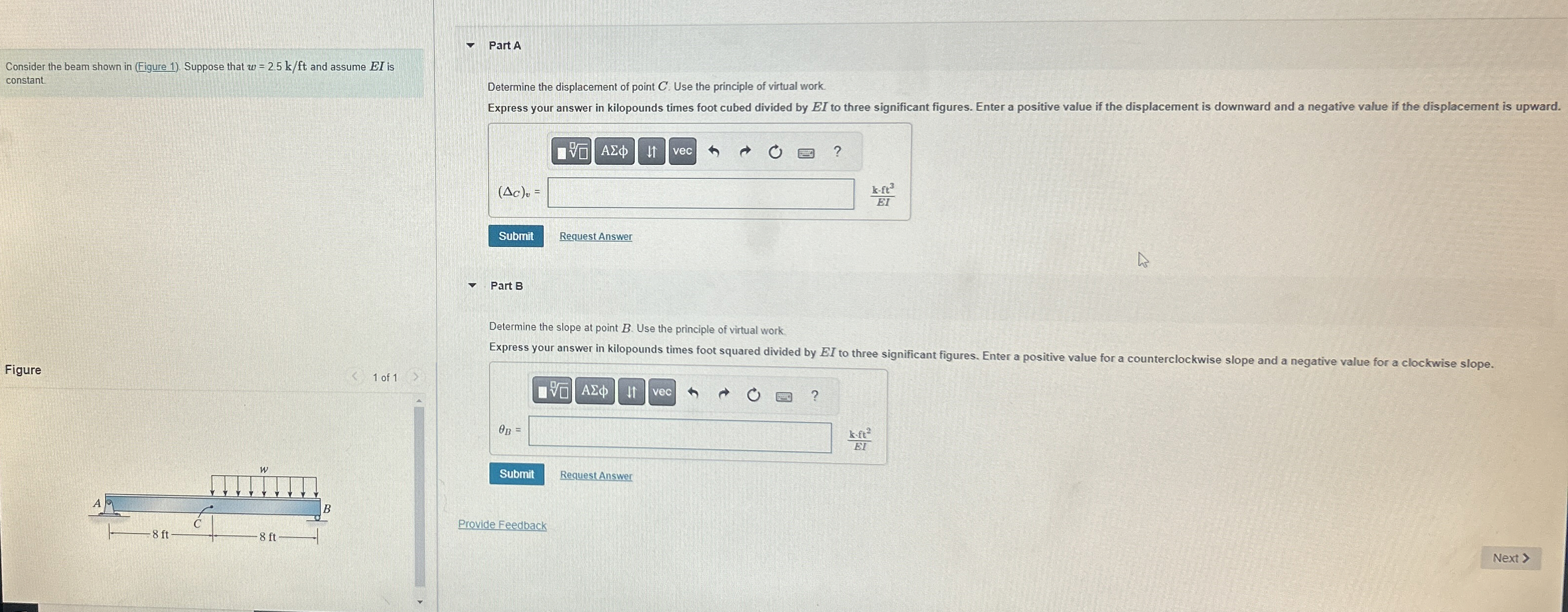

Determine the displacement of point C. Use the principle of virtual work
Request Answer
Part B
Determine the slope at point B. Use the principle of virtual work
Express your answer in kilopounds times foot squared divided by EI to three significant figures. Enter a positive value for a counterclockwise slope and a negative value for a clockwise slope.
Request Answer
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
