Question: Consider the beam shown in ( Figure 1 ) . Suppose w 1 = 6 k N m and w 2 = 2 0 k

Consider the beam shown in (Figure 1). Suppose w1=6kNm and w2=20kNm.
Figure
1 of 1
1 of 1
Previous Answers
Request Answer
Incorrect; Try Again; 5 attempts remaining
Part C
Part D

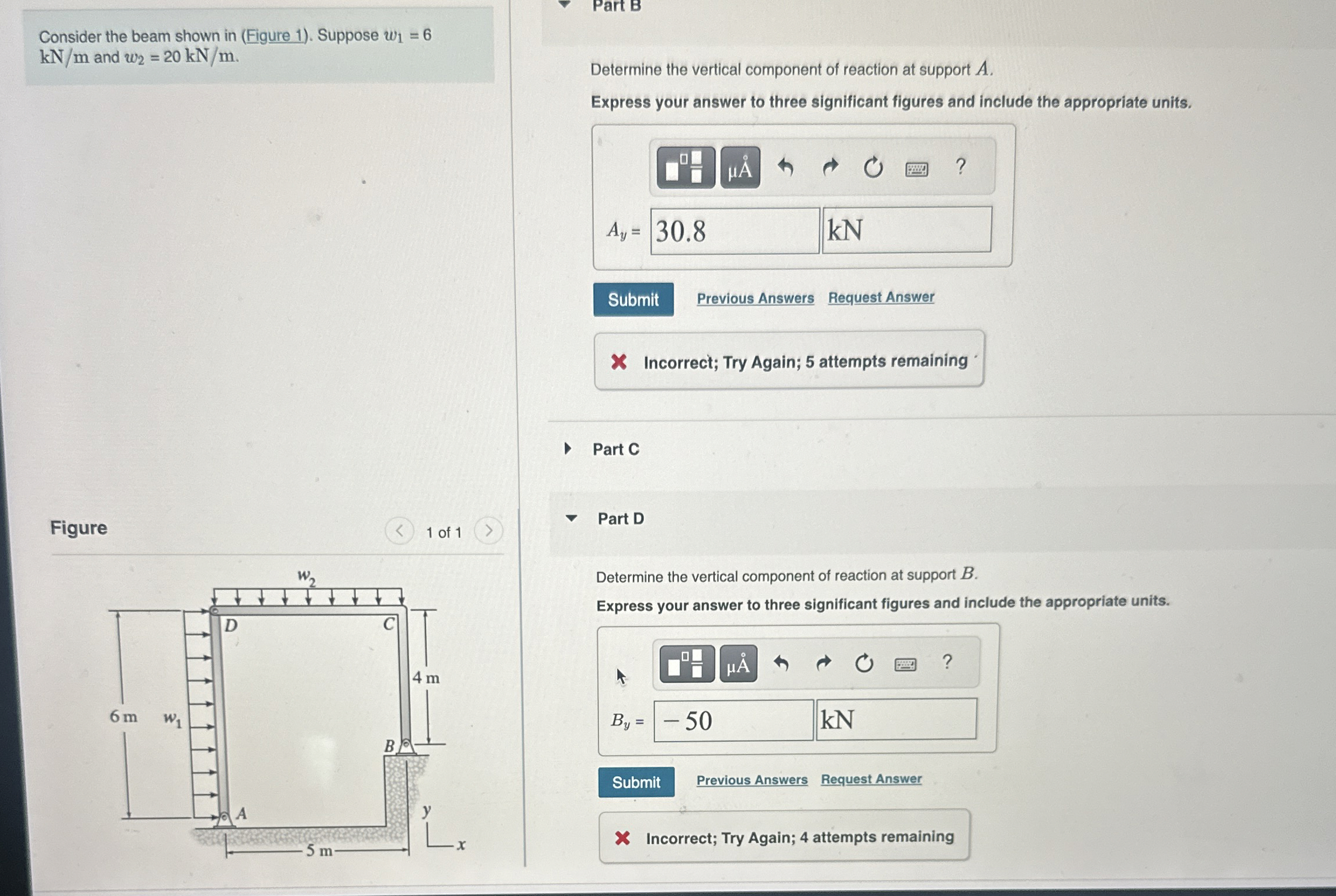

Determine the vertical component of reaction at support B.
Express your answer to three significant figures and include the appropriate units.
By=
Request Answer
X Incorrect; Try Again; 4 attempts remaining
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
