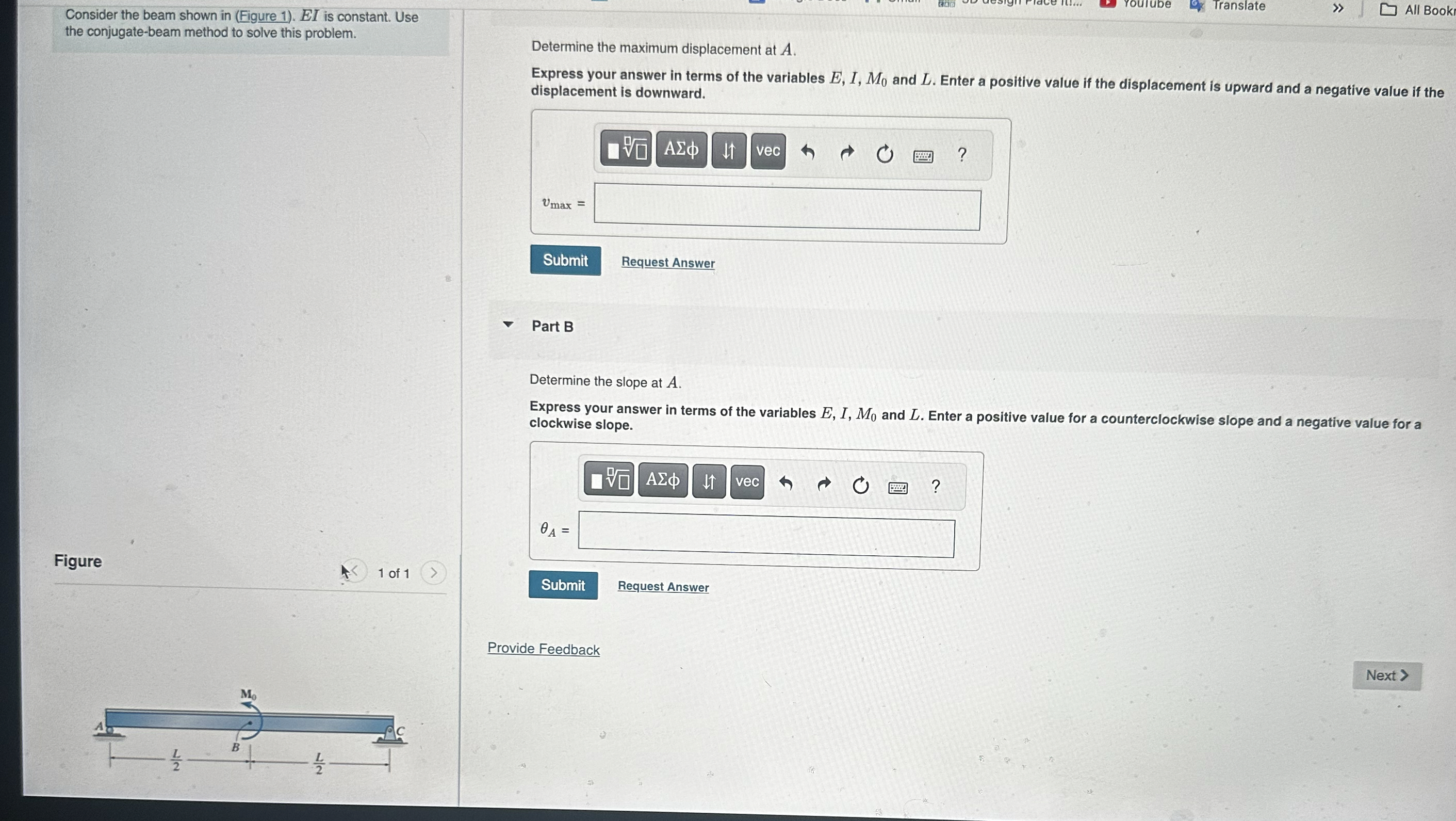

Question: Consider the beam shown in ( Figure 1 ) . EI is constant. Use the conjugate - beam method to solve this problem. Figure 1

Consider the beam shown in (Figure 1). EI is constant. Use the conjugate-beam method to solve this problem.
Figure
1 of 1
Determine the maximum displacement at A.
Express your answer in terms of the variables E,I,M0 and L. Enter a positive value if the displacement is upward and a negative value if the displacement is downward.
Request Answer
Part B
Determine the slope at A.
Express your answer in terms of the variables E,I,M0 and L. Enter a positive value for a counterclockwise slope and a negative value for a clockwise slope.
A=
Request Answer
Provide Feedback
Consider the beam shown in ( Figure 1 ) . EI is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
