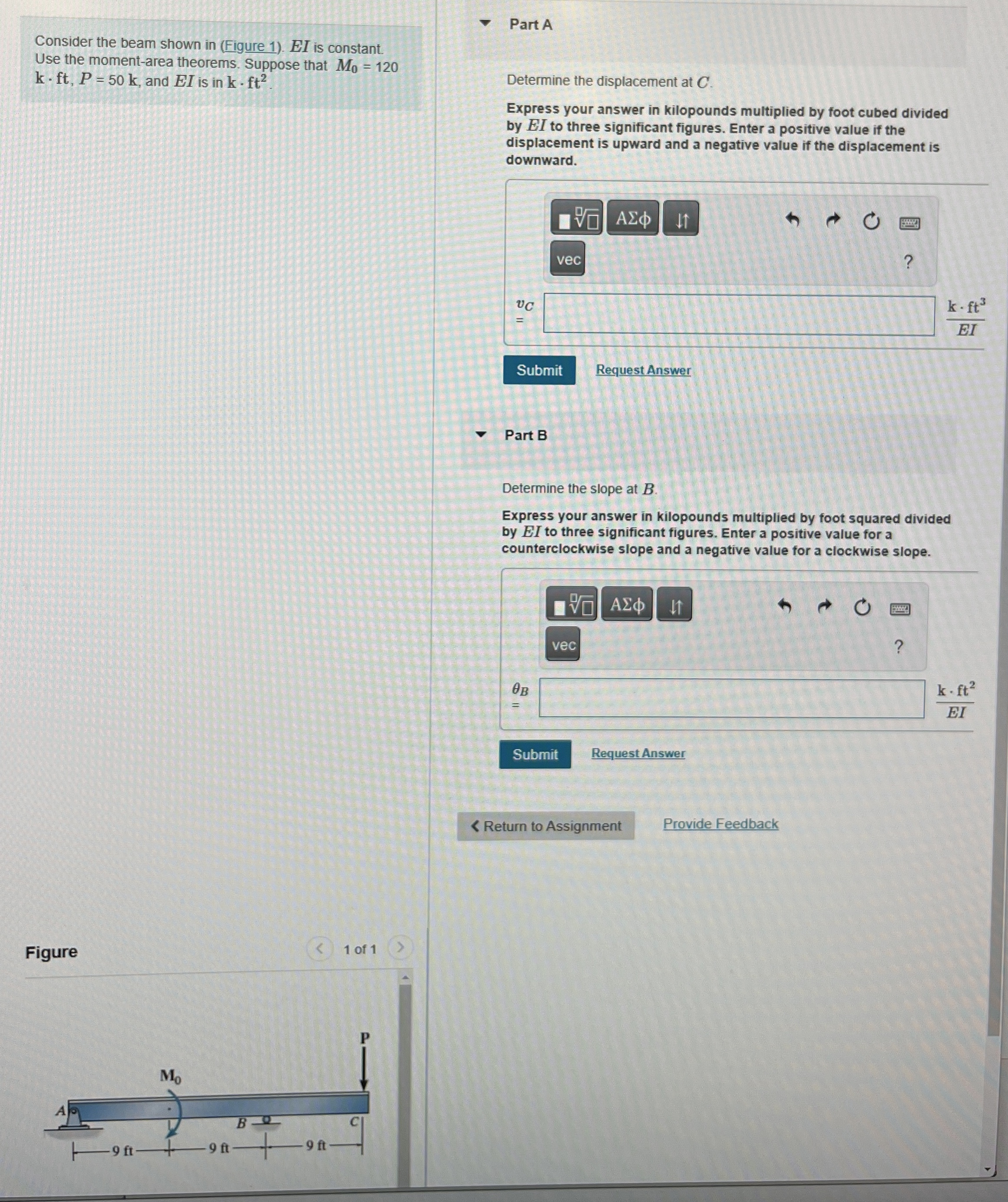

Question: Consider the beam shown in ( Figure 1 ) . EI is constant. Use the moment - area theorems. Suppose that M 0 = 1

Consider the beam shown in

(

Figure

1) .

EI is constant. Use the moment

-

area theorems. Suppose that

M_{0} = 120 k * f t, P = 50 k,

and

E I

is in

k * f t^{2} .

Part A

Determine the displacement at

C .

Express your answer in kilopounds multiplied by foot cubed divided by

E I

to three significant figures. Enter a positive value if the displacement is upward and a negative value if the displacement is downward.

Request Answer

Part B

Determine the slope at

B .

Express your answer in kilopounds multiplied by foot squared divided by EI to three significant figures. Enter a positive value for a counterclockwise slope and a negative value for a clockwise slope.

Request Answer

Provide Feedback

Figure

1

1

Consider the beam shown in ( Figure 1 ) . EI is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
