Question: Consider the beam shown in ( Figure 1 ) . E I is constant. Suppose that L = 9 f t . Solve this problem

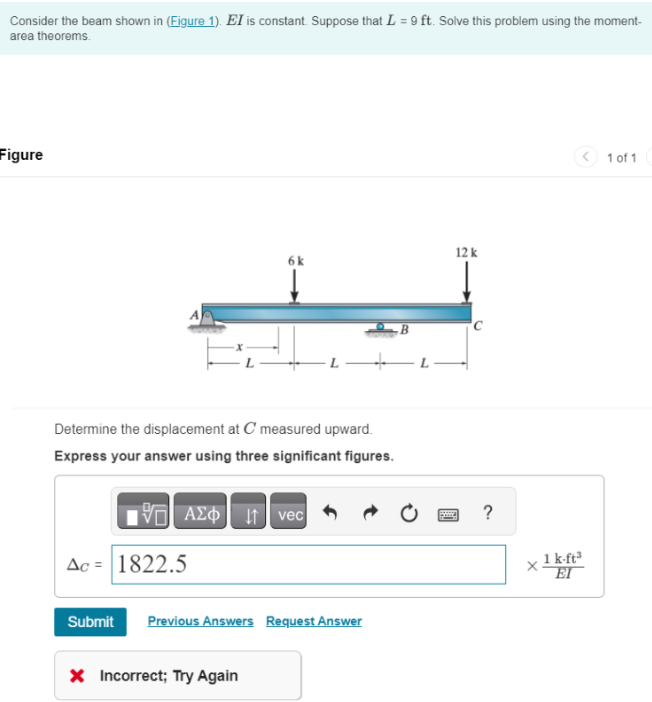

Consider the beam shown in (Figure 1).EI is constant. Suppose that L=9ft. Solve this problem using the moment-
area theorems.
Figure
Determine the displacement at C measured upward.
Express your answer using three significant figures.
C=
1k*ft3EI
Please, avoid answering with the same values as other Chegg answers. They were all wrong. Thanks.
Consider the beam shown in ( Figure 1 ) . E I is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
