Question: Consider the beam shown in ( Figure 1 ) . Follow the sign convention.Determine the shear throughout the beam as a function of x ,

Consider the beam shown in (Figure 1). Follow the sign convention.Determine the shear throughout the beam as a function of x, for xxxxx2m, where xisin meters.
Express your answer in kilonewton-meters in terms ofx. Express the coefficients using three significant figures.

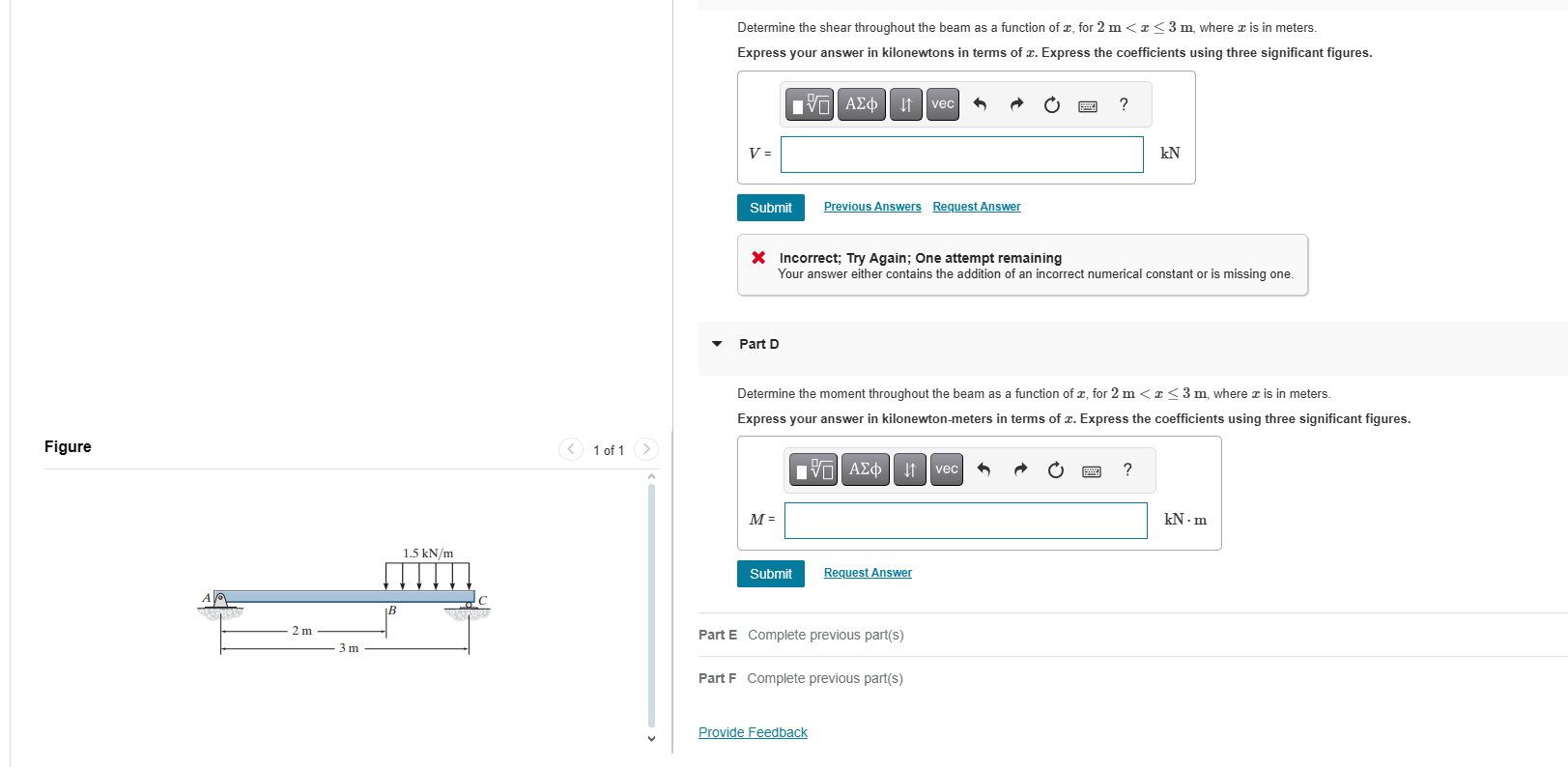

Figure
Request Answer
Part E Complete previous part(s)
Part F Complete previous part(s)2m, where xisin meters.
Express your answer in kilonewtons in terms ofx. Express the coefficients using three significant figures.
Request Answer
Incorrect; Try Again; One attempt remaining
Your answer either contains the addition ofan incorrect numerical constant oris missing one.
Part D
Determine the moment throughout the beam as a function ofx, for 2m, where xisin meters.
Express your answer in kilonewton-meters in terms ofx. Express the coefficients using three significant figures.
Figure
Request Answer
Part E Complete previous part(s)
Part F Complete previous part(s)
Consider the beam shown in ( Figure 1 ) . Follow

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
