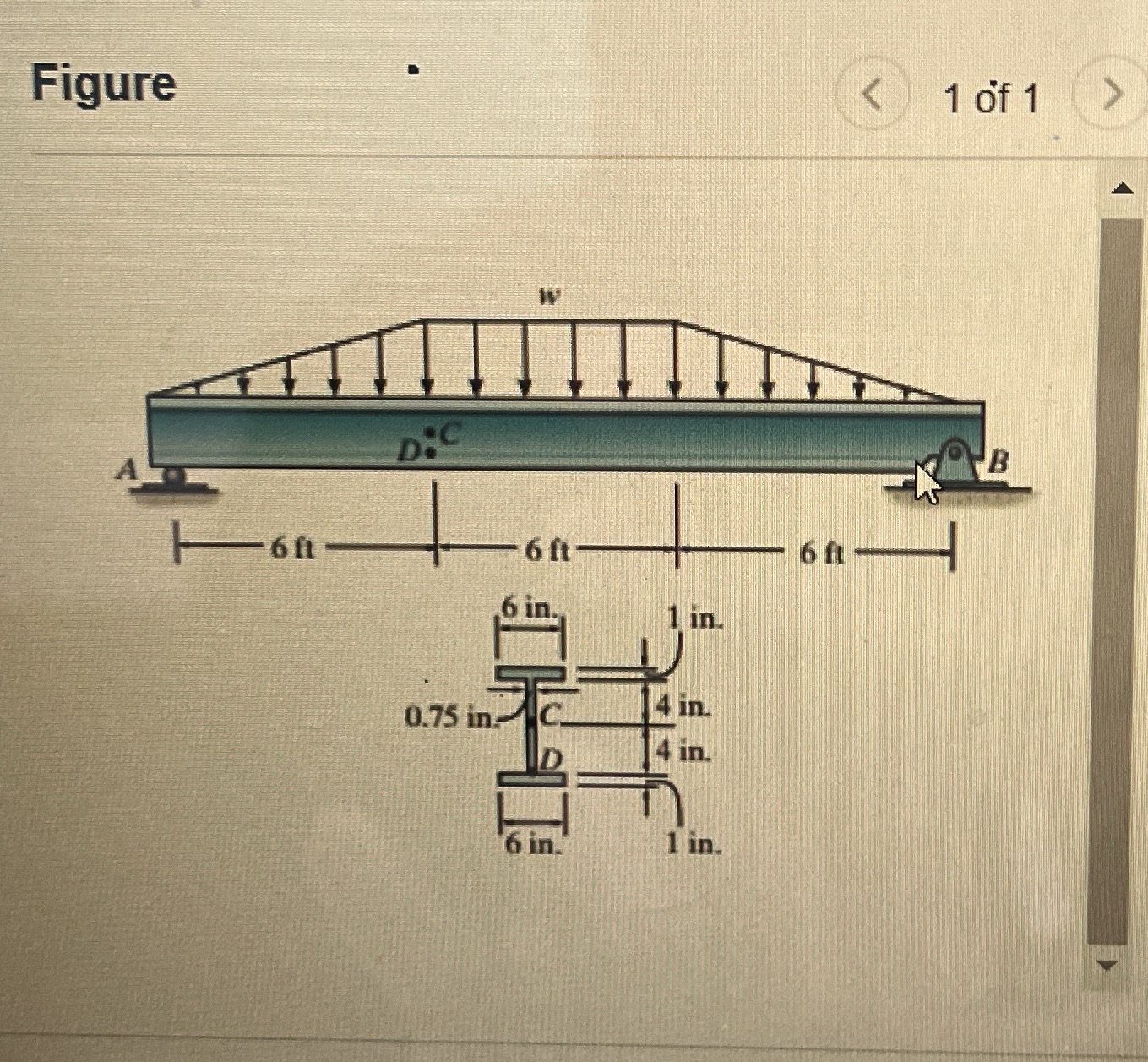

Question: Consider the beam shown in ( Figure 1 ) . Take w = 1 . 8 k i p f t . Determine the shear

Consider the beam shown in (Figure 1). Take w=1.8kipft.
Determine the shear stress at point C located on the web of the beam.
Express your answer in kilopounds per square inch to three significant figures.
Previous Answers
Request Answer
X Incorrect; Try Again; 4 attempts remaining
Part B
Determine the shear stress at point D located on the web of the beam.
Express your answer in kilopounds per square inch to three significant figures.
D=
Request Answer
Figure
1 of 1
Consider the beam shown in ( Figure 1 ) . Take w

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
