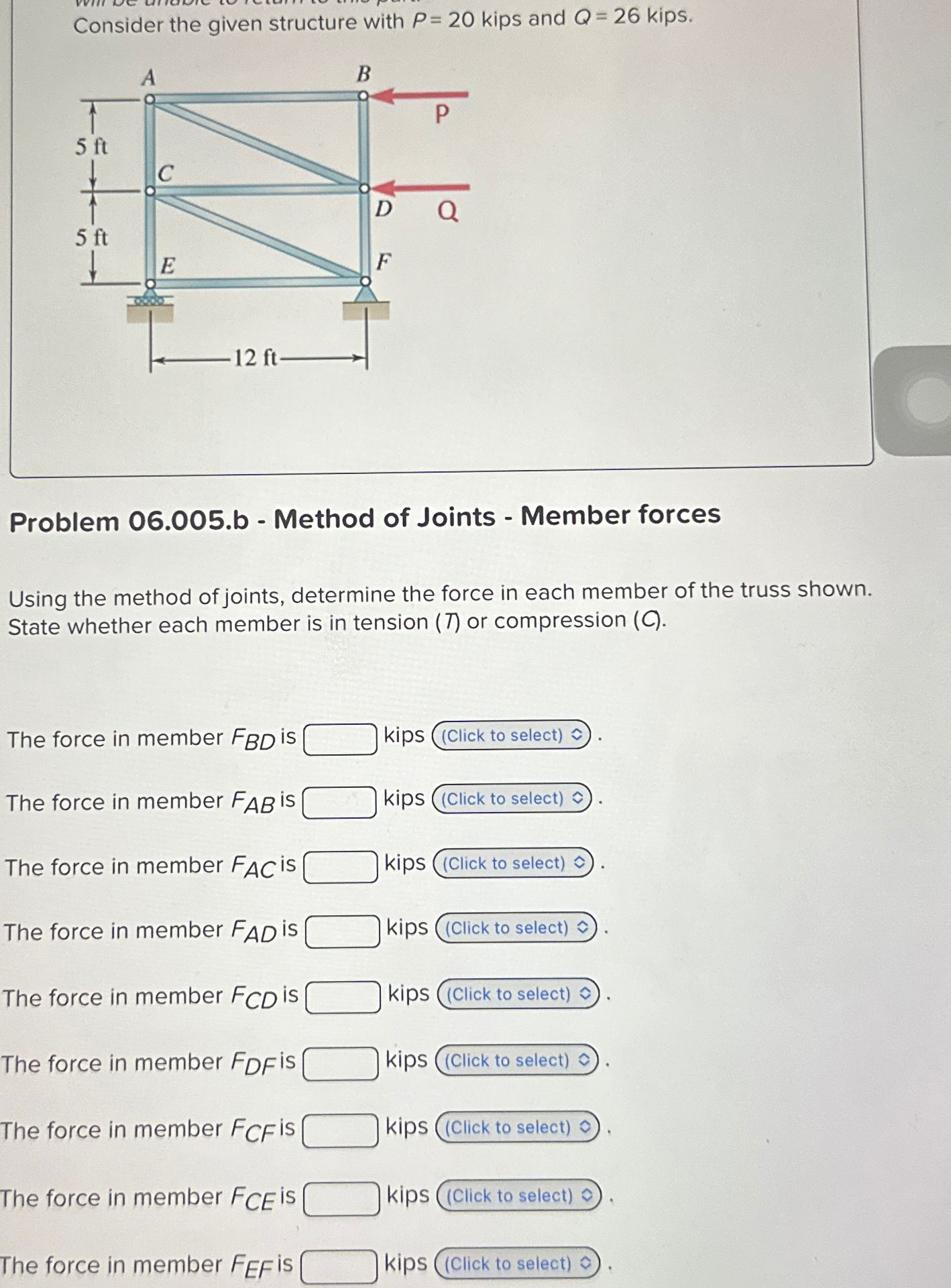

Consider the given structure with $P=20$ kips and $Q=26$ kips.

Problem $06\mathrm{.}005.$b $-$ Method of Joints $-$ Member forces

Using the method of joints, determine the force in each member of the truss shown. State whether each member is in tension $(T)$ or compression $(C).$

The force in member $F_{BD}$ is $$ kips $1.$

The force in member $F_{AB}$ is $$ kips $(1.$

The force in member $F_{AC}$ is $$ kips $(1.$

The force in member $F_{AD}$ is $$ kips $(1.$

The force in member $F_{CD}$ is $$ kips $($

The force in member $F_{DF}$ is $$ kips $$

The force in member FCF is $$ kips $$

The force in member $F_{CE}$ is $$ kips $($

The force in member $F_{EF}$ is $$ kips $($
