Question: Consider the loading shown. The allowable normal stress for the steel used is 2 3 . 2 ksi. Determine the section modulus and select the

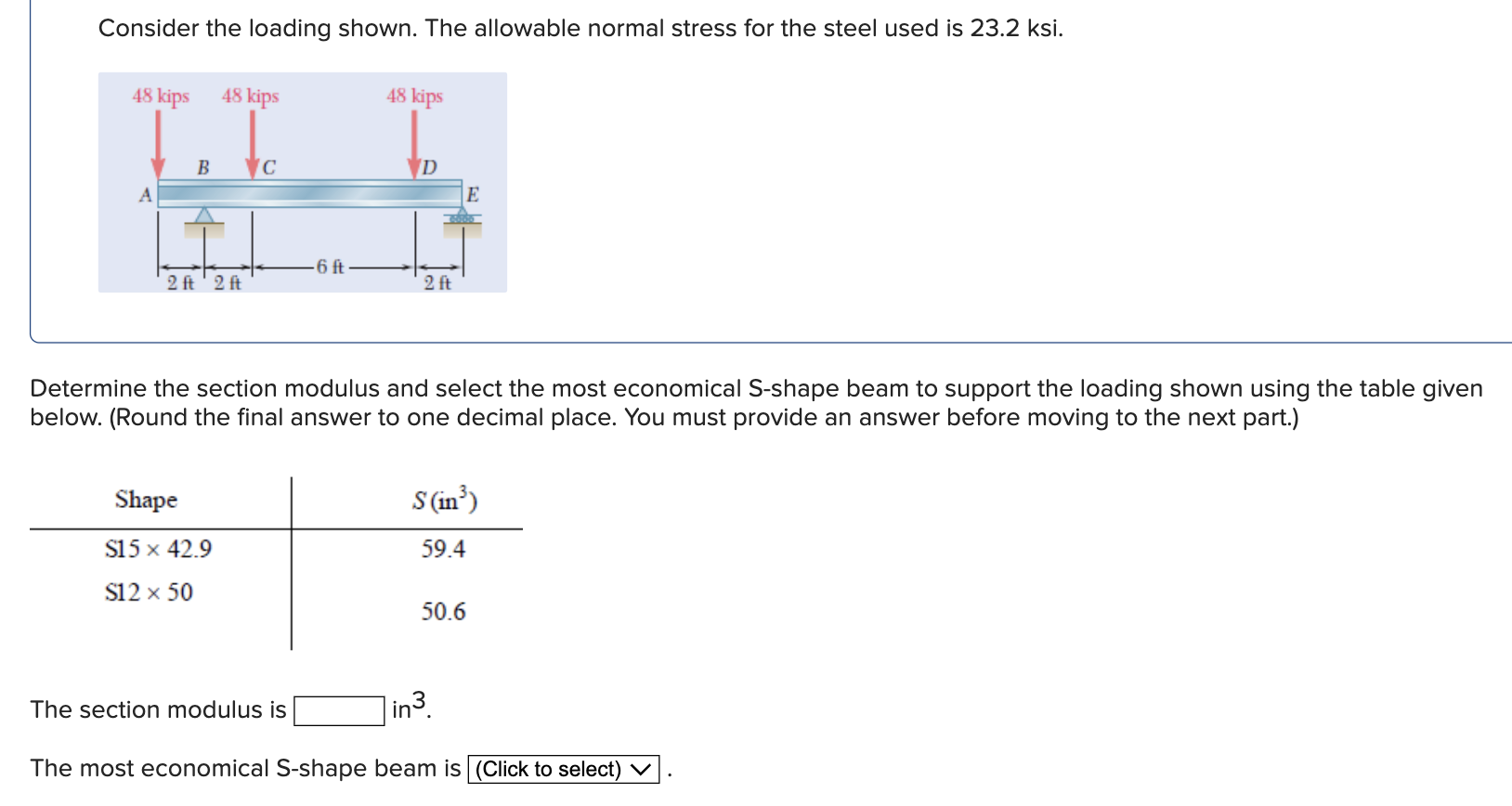

Consider the loading shown. The allowable normal stress for the steel used is 23.2ksi.
Determine the section modulus and select the most economical S-shape beam to support the loading shown using the table given
below. (Round the final answer to one decimal place. You must provide an answer before moving to the next part.)
The section modulus is ,in3.
The most economical S-shape beam is (Click to select)V.
Consider the loading shown. The allowable normal
