Question: Construct an activity on arrow (PERT) network. Show all your wok. Label activities in the network by the letters and nodes by numbers starting from

Construct an activity on arrow (PERT) network.

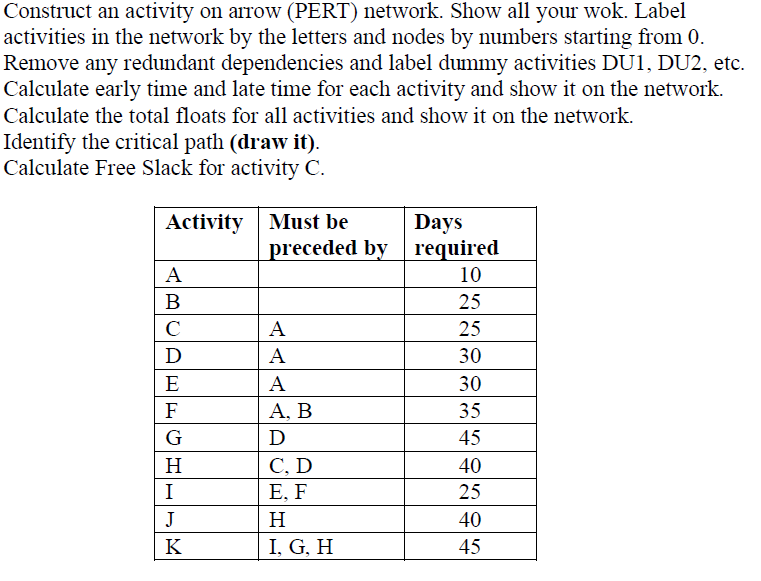

Construct an activity on arrow (PERT) network. Show all your wok. Label activities in the network by the letters and nodes by numbers starting from 0. Remove any redundant dependencies and label dummy activities DUI, DU2, etc. Calculate early time and late time for each activity and show it on the network. Calculate the total floats for all activities and show it on the network. Identify the critical path (draw it). Calculate Free Slack for activity C. Activity Must be Days preceded by required A 10 B 25 A 25 D A 30 E A 30 F A, B 35 G D 45 H C D 40 I E, F 25 J H 40 K I, G, H 45
