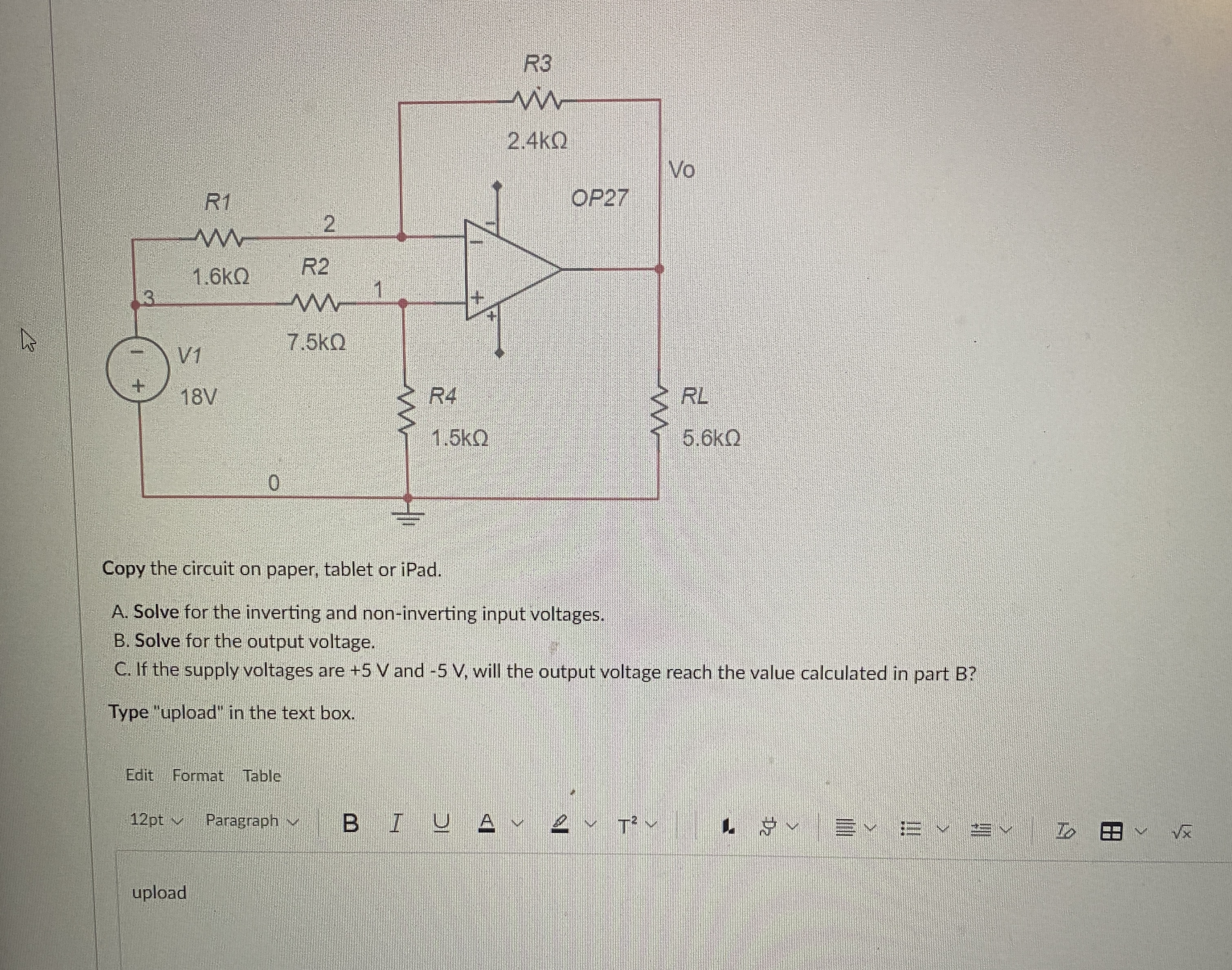

Copy the circuit on paper, tablet or iPad.

A$.$ Solve for the inverting and non$-$inverting input voltages.

B$.$ Solve for the output voltage.

C$.$ If the supply voltages are $+5$ V and $-5$ V $,$ will the output voltage reach the value calculated in part B $?$
