Create a control logic using Ladder language in Zelio Soft 2 (Schneider).

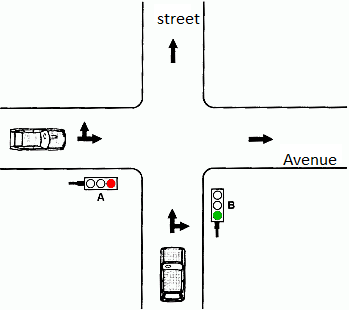

The logic consist in controlling cars traffic in a intersecction of a city.

The 2 traffic lights are comprised of 3 lamps (green, yellow and red). The Avenues traffic(A) light remains opened for 50 seconds, whereas the Streets traffic light (B) remains opened for only 35 seconds. The state of transition from green to red is 4 seconds.

After these time both sides must be closed for 2 seconds before allow passage of cars of the other track. This process is continuous.

*print screen of ladder logic on Zelio is required as answer

street 1 10192 Avenue 00 A B
