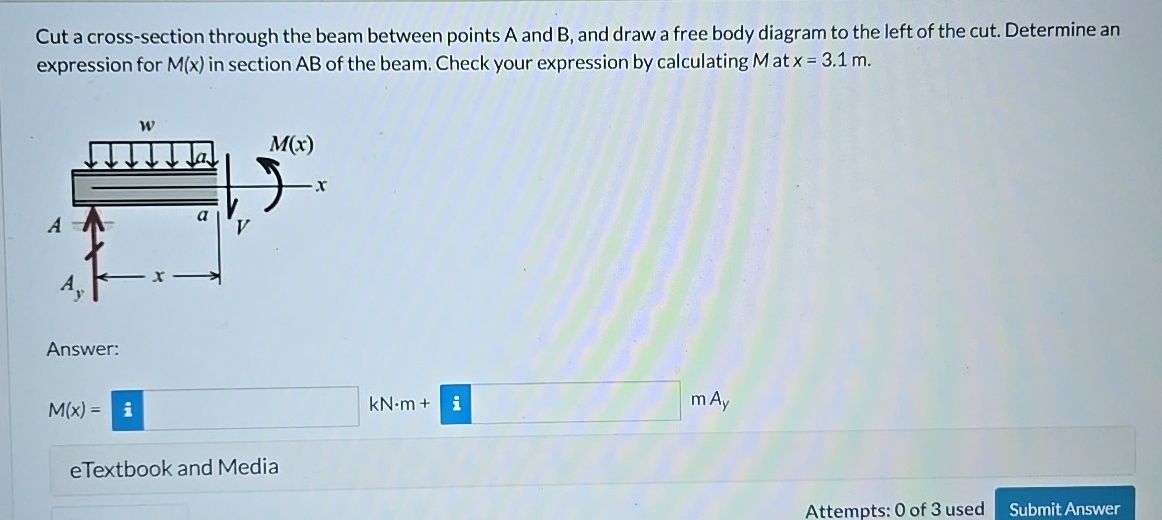

Cut a cross$-$section through the beam between points A and $B,$ and draw a free body diagram to the left of the cut. Determine an expression for $M(x)$ in section $AB$ of the beam. Check your expression by calculating $M$ at $x=3\mathrm{.}1m.$

Answer:

$M(x)=kN*m+m{A}_y$
