Question: ( d ) Consider that each diode in the figure below has a forward bias resistance of 2 5 and infinite resistance in reverse bias,

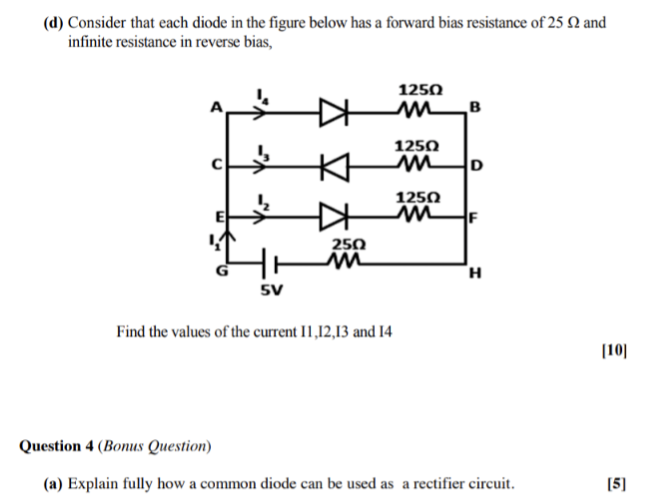

(d) Consider that each diode in the figure below has a forward bias resistance of 25 and infinite resistance in reverse bias,
Find the values of the current I1,12,13 and I4
[10]
Question 4(Bonus Question)
(a) Explain fully how a common diode can be used as a rectifier circuit.
[5]
( d ) Consider that each diode in the figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
