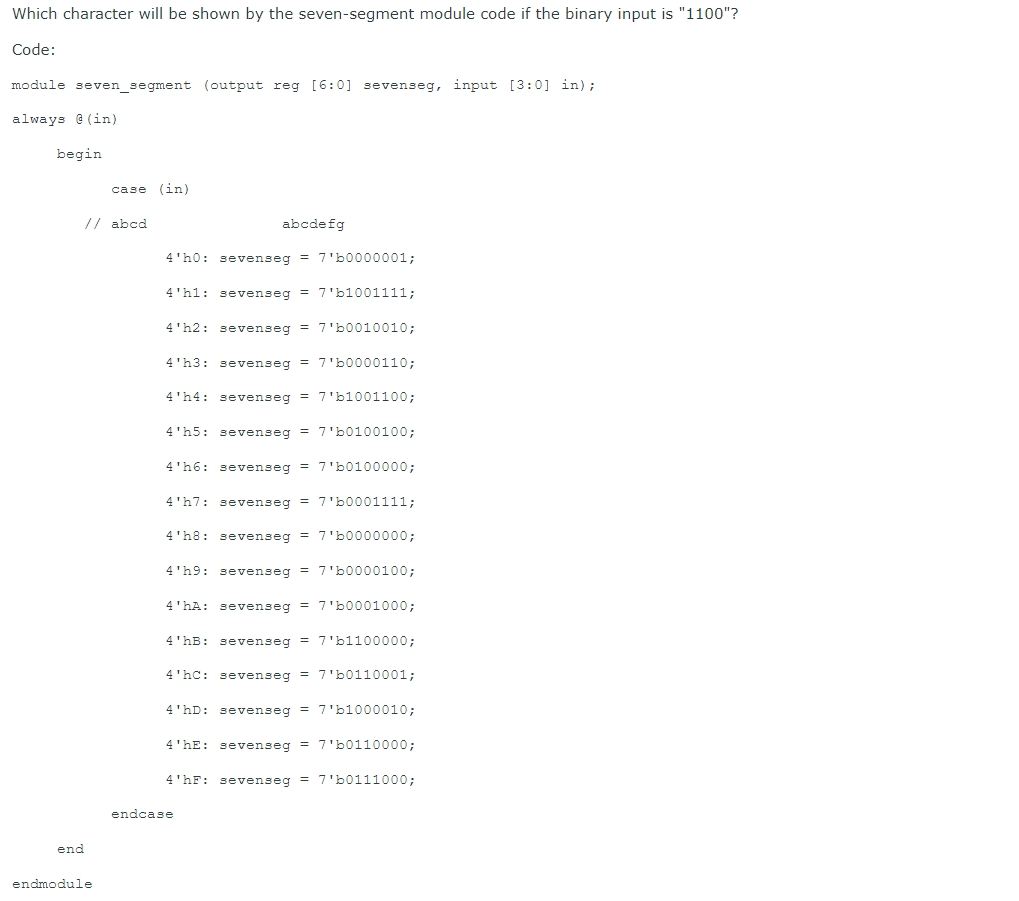

Question: ddddWhich character will be shown by the seven - segment module code if the binary input is 1 1 0 0 ? Code:

ddddWhich character will be shown by the seven-segment module code if the binary input is "1100?
Code:
ddddWhich character will be shown by the seven -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
