Question: Description:- This program uses TMR0 to generate a 100mSec delay using interrupts. A pushbutton (PB0), connected to pin RA0 of the PIC16F188, is used start

Description:- This program uses TMR0 to generate a 100mSec delay using

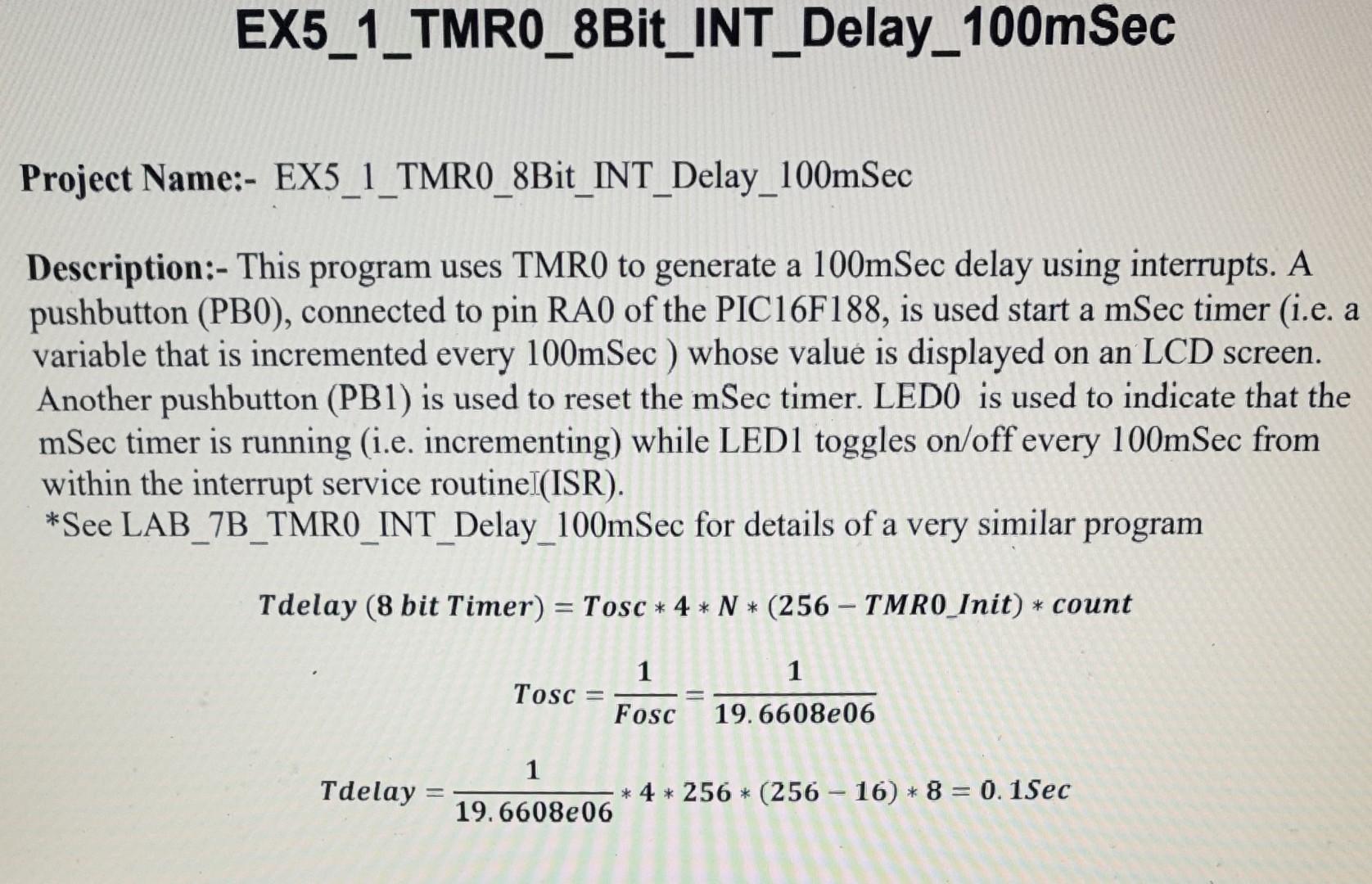

Description:- This program uses TMR0 to generate a 100mSec delay using interrupts. A pushbutton (PB0), connected to pin RA0 of the PIC16F188, is used start a mSec timer (i.e. a variable that is incremented every 100mSec ) whose value is displayed on an LCD screen. Another pushbutton (PB1) is used to reset the mSec timer. LEDO is used to indicate that the mSec timer is running (i.e. incrementing) while LED1 toggles on/off every 100mSec from within the interrupt service routine](ISR). *See LAB_7B_TMR0_INT_Delay_100mSec for details of a very similar program Tdelay(8bitTimer)=Tosc4N(256TMR0_Init)countTosc=Fosc1=19.6608e061Tdelay=19.6608e0614256(25616)8=0.1Sec

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Description:- This program uses TMR0 to generate a 100mSec delay using interrupts. A pushbutton (PB0), connected to pin RA0 of the PIC16F188, is used start a mSec timer (i.e. a variable that is...
