Design a threshold logic neural network that can correctly solve the two class decision problem shown in Figure Q1 (a). You are required to draw the final network with all the connection labelled with weight values

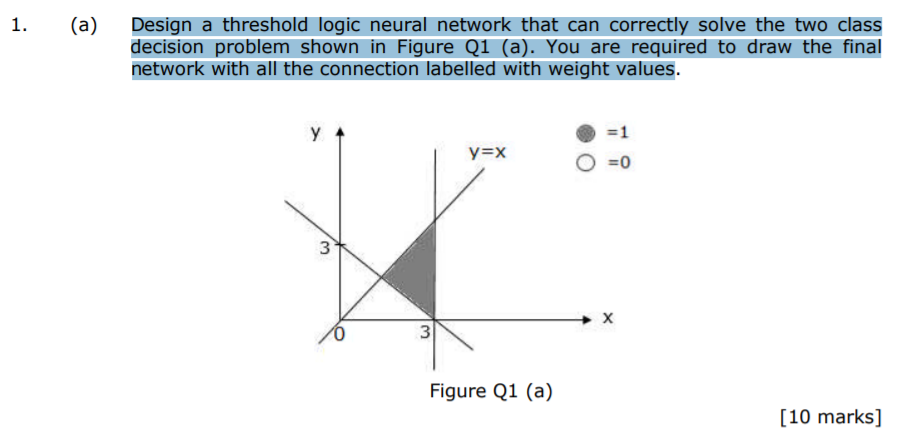

1. (a) Design a threshold logic neural network that can correctly solve the two class decision problem shown in Figure Q1 (a). You are required to draw the final network with all the connection labelled with weight values. y=x =1 =0 3 X 3 Figure Qi (a) [10 marks] 1. (a) Design a threshold logic neural network that can correctly solve the two class decision problem shown in Figure Q1 (a). You are required to draw the final network with all the connection labelled with weight values. y=x =1 =0 3 X 3 Figure Qi (a) [10 marks]
