Question: Design and simulate (on OrCAD) high frequency UPS system with the following speifications: Voltage Voltage Range Frequency Voltage Voltage regulation Frequency range Input 110/120VAC

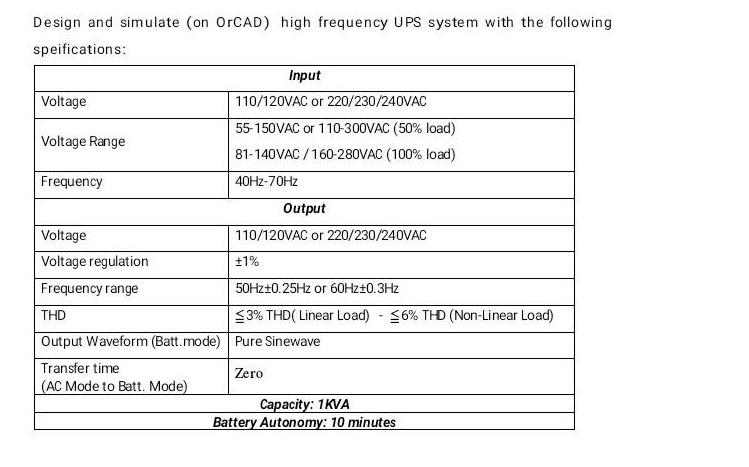

Design and simulate (on OrCAD) high frequency UPS system with the following

Design and simulate (on OrCAD) high frequency UPS system with the following speifications: Voltage Voltage Range Frequency Voltage Voltage regulation Frequency range Input 110/120VAC or 220/230/240VAC 55-150VAC or 110-300VAC (50% load) 81-140VAC/160-280VAC (100% load) Transfer time (AC Mode to Batt. Mode) 40Hz-70Hz Output 110/120VAC or 220/230/240VAC 1% 50Hz0.25Hz or 60Hz0.3Hz 3% THD(Linear Load) 6% THD (Non-Linear Load) THD Output Waveform (Batt.mode) Pure Sinewave Zero Capacity: 1KVA Battery Autonomy: 10 minutes
