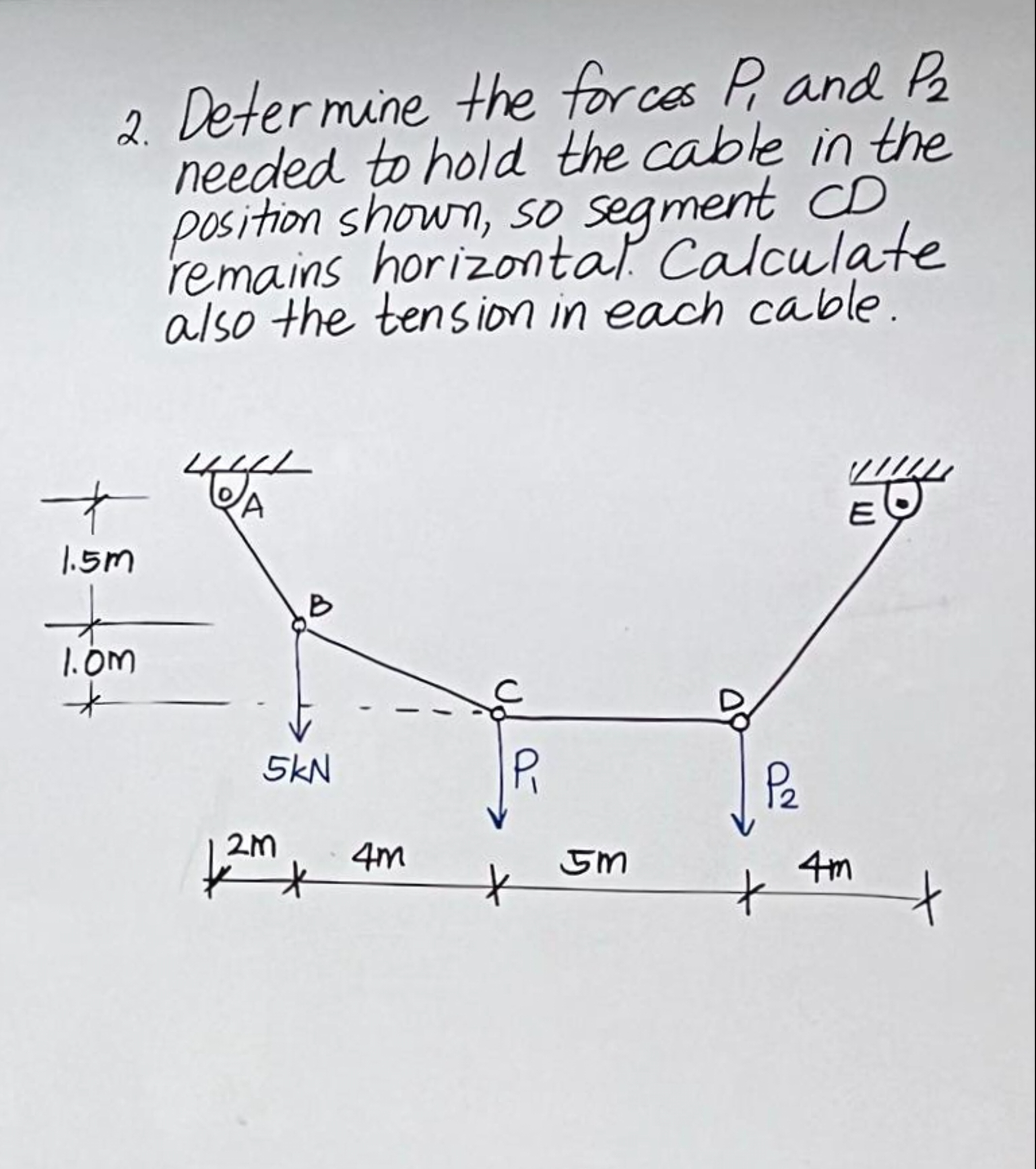

Question: Determine the for c e s P 1 and P 2 needed to hold the cable in the position shown, so segment C D remains

Determine the for cesP1 and P2
needed to hold the cable in the
position shown, so segment CD
remains horizontal. Calculate
also the tension in each cable.
Determine the for c e s P 1 and P 2 needed to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

b ) Determine the force P needed to hold the cable in the position shown in Fig.Q 3 ( a ) below, i . e . , so that segment BC remains horizontal. Also compute the sag y B and the maximum tension in...

Q:

Problem 3 . 2 ( Medium ) Determine the force P needed to hold the cable in the position shown so that segment BC remains horizontal. Also, compute the sag y B and the maximum tension in the cable. 1...

Q:

What does this mean 5 - 1 . Determine the tension in each segment of the cable and the distance y D - Prob. 5 - 1 * 5 - 4 . The cable supports the loading shown. Determine the distance x B the force...

Q:

Problem 7 . 1 0 1 Consider the cable shown in ( Figure 1 ) . Suppose that P 1 = 4 . 2 k N P 2 = 5 . 9 k N Part A Determine the force P needed to hold the cable in the position shown, i . e . , so...

Q:

Consider the cable shown in ( Figure 1 ) . Suppose that P 1 = 4 k N , P 2 = 6 . 5 k N . Figure A ) Determine the force P needed to hold the cable in the position shown, i . e . , so segment BC...

Q:

Cables Determine the force P needed to hold the cable in the position shown, i.e., so segment BC remains horizontal. Also, compute the sag h and the maximum tension in the cable. A E 3 m h D B C V6...

Q:

Determine the force P needed to hold the cable in the position shown, i.e., so segment BC remains horizontal. Also, compute the sag yB and the maximum tension in the cable. B 4 m 4 kN 6 kN 6 m -3 m2...

Q:

Consider the cable shown in ( Figure 1 ) . Suppose that P 1 = 3 . 5 kN , P 2 = 6 . 5 kNConsider the cable shown in ( Figure 1 ) . Suppose that P 1 = 3 . 5 k N , P 2 = 6 . 5 k N . Determine the force...

Q:

Determine the force P needed to hold the cable in the position shown, i.e., so segment BC remains horizontal. Also, compute the sag yB and the maximum tension in the cable. Units Used: kN = 103 N...

Q:

Determine the force P needed to hold the cable in the position shown, i.e., so segment BC remains horizontal. Also, compute the sag yB and the maximum tension in thecable. 3 m 6 kN 4 kN +3m-2 m -6 m...
