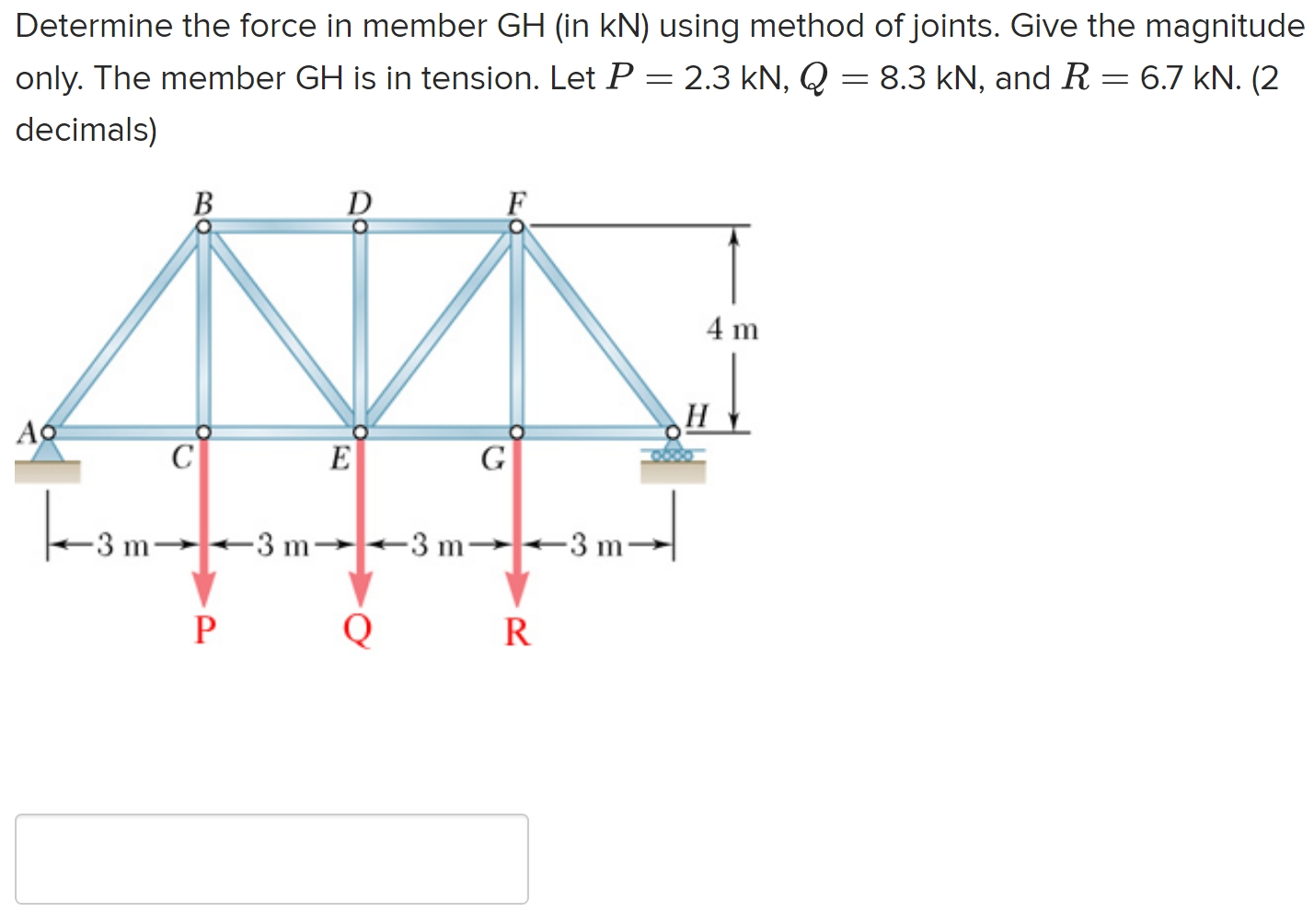

Question: Determine the force in member GH ( in kN ) using method of joints. Give the magnitude only. The member GH is in tension. Let

Determine the force in member GH (in kN ) using method of joints. Give the magnitude
only. The member GH is in tension. Let P=2.3kN,Q=8.3kN, and R=6.7kN.(2
decimals)\Comb{}{}
Determine the force in member GH ( in kN ) using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
