Question: Determine the maximum deflection ( in inches and absolute value ) for the beam shown. E = constant = 2 9 , 0 0 0

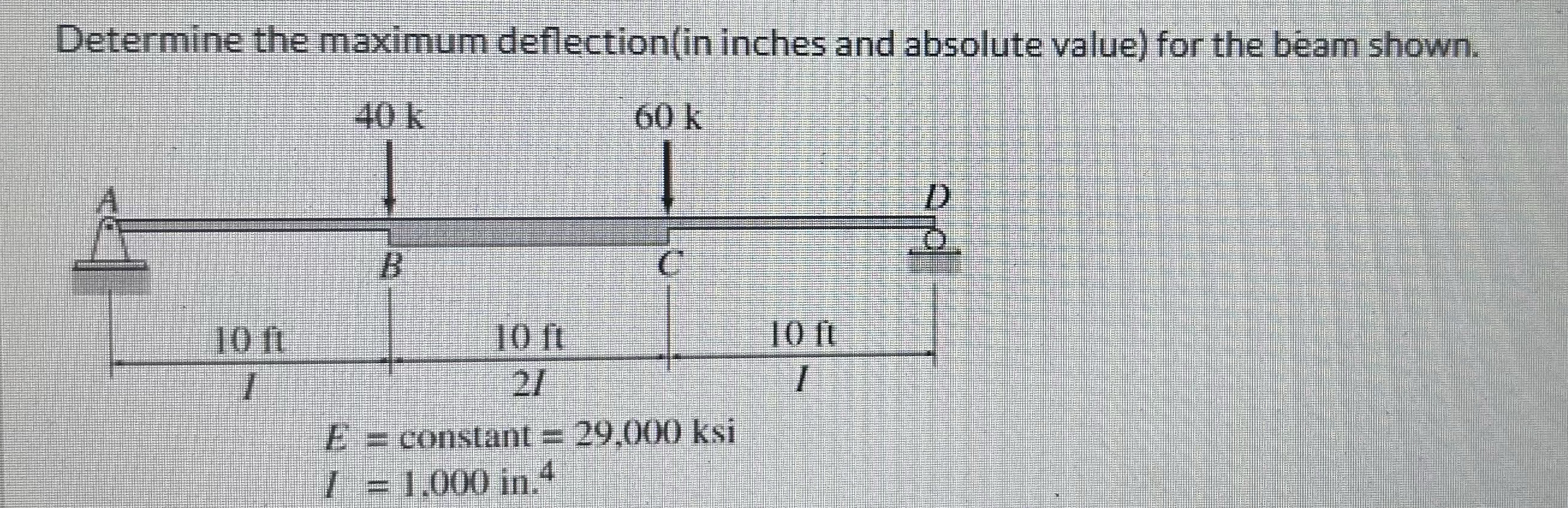

Determine the maximum deflection(in inches and absolute value) for the beam shown.
E= constant =29,000ksi
I=1,000in.?4
Determine the maximum deflection ( in inches and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
