Question: Determine the transfer function between the output voltage and the input voltage of the circuit. Show that the filter is a bandpass filter. Find

Determine the transfer function between the output voltage and the input voltage

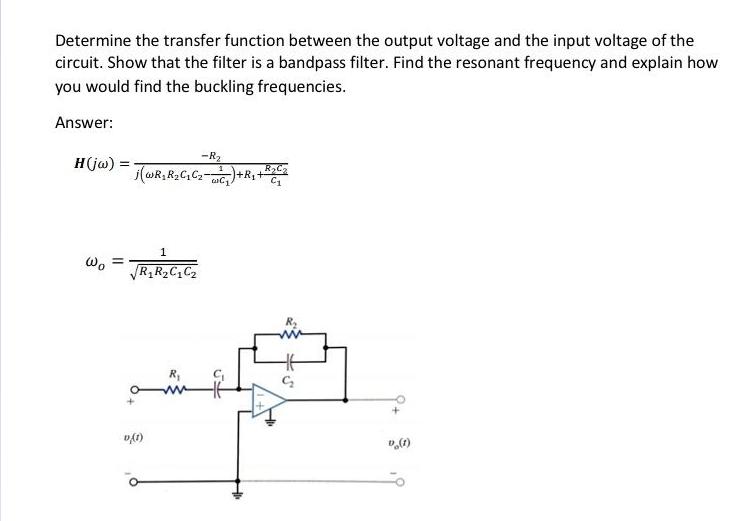

Determine the transfer function between the output voltage and the input voltage of the circuit. Show that the filter is a bandpass filter. Find the resonant frequency and explain how you would find the buckling frequencies. Answer: -R2 H(ja) = - C1 1 W. = RR2C,C2 R,

Step by Step Solution

★★★★★

3.35 Rating (167 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Explaination for Bandpass filter it is a bandp... View full answer
