Question: Develop a bar chart schedule for the following project, as represented by its list of activities. Act. A B C D E F G H

Develop a bar chart schedule for the following

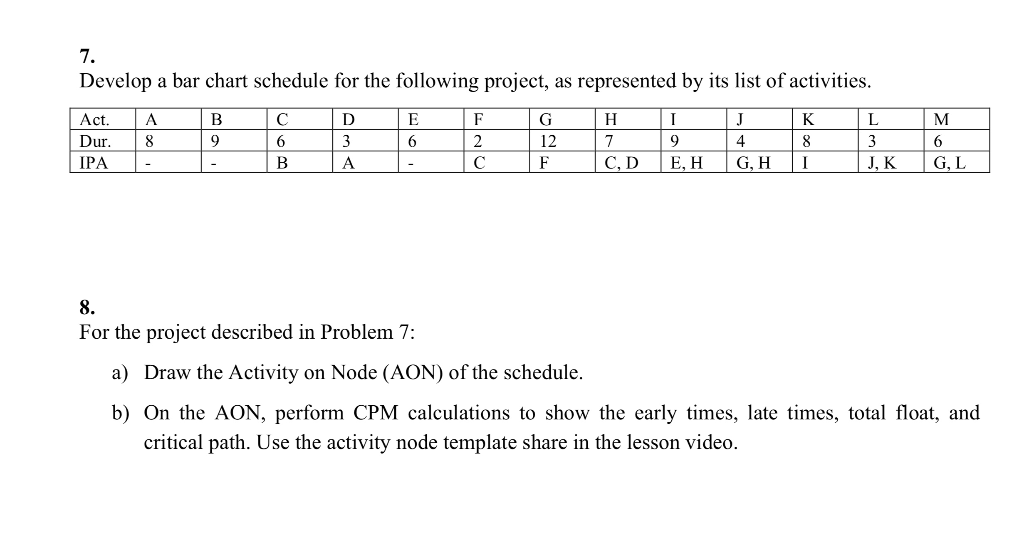

Develop a bar chart schedule for the following project, as represented by its list of activities. Act. A B C D E F G H I J K L M Dur. 8 9 6 3 6 2 12 7 9 4 8 3 6 IPA - B A - C F CD E, H GHIJK GL For the project described in Problem 7: a) Draw the Activity on Node (AON) of the schedule. b) On the AON, perform CPM calculations to show the early times, late times, total float, and critical path. Use the activity node template share in the lesson video

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
