Question: Develop a network diagram Fill-out the empty table to find slack. What is the critical path? How long will it take to complete the project?

Develop a network diagram Fill-out the empty

Develop a network diagram
Fill-out the empty table to find "slack".
What is the critical path?
How long will it take to complete the project?
(Optional) you can list all paths and calculate the overall time for each path. Then, identify the critical path. Compare the answer with #3.

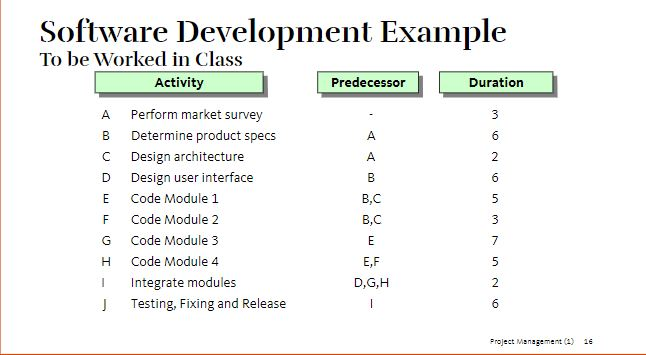

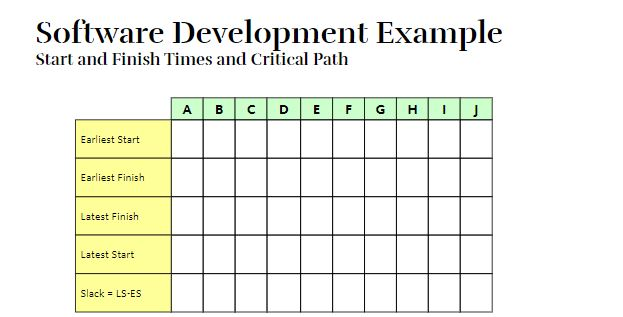

Software Development Example Predecessor Duration 3 B 6 A 2 To be Worked in Class Activity A Perform market survey Determine product specs Design architecture Design user interface Code Module 1 Code Module 2 Code Module 3 Code Module 4 Integrate modules Testing, Fixing and Release D B 6 E 5 F 3 G B,C B,C E E,F D,G,H 7 5 2 1 - 6 Project Management (A) 16 Software Development Example Start and Finish Times and Critical Path ABCDEFGHI J Earliest Start Earliest Finish Latest Finish Latest Start Slack = LS-ES
