Question: Develop an AON Diagram for the RO-RO Project Draw the forward and backward passes to show th slack. State the critical path State the ES,

Develop an AON Diagram for the RO-RO Project Draw

Develop an AON Diagram for the RO-RO Project
Draw the forward and backward passes to show th slack.
State the critical path
State the ES, EF, LS, LF
State the Slack time

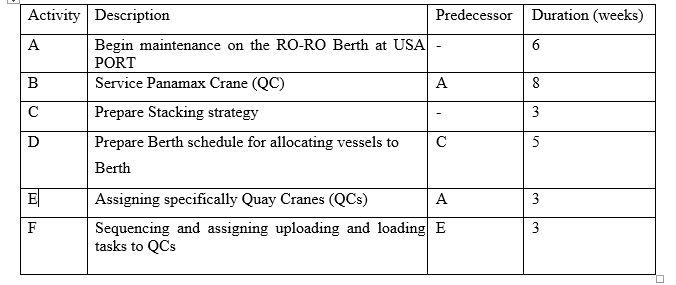

B Activity Description Predecessor Duration (weeks) A Begin maintenance on the RO-RO Berth at USA 6 PORT Service Panamax Crane (QC) A 8 Prepare Stacking strategy 3 D Prepare Berth schedule for allocating vessels to 5 Berth El Assigning specifically Quay Cranes (QCs) A 3 Sequencing and assigning uploading and loading E 3 tasks to QCs 5
