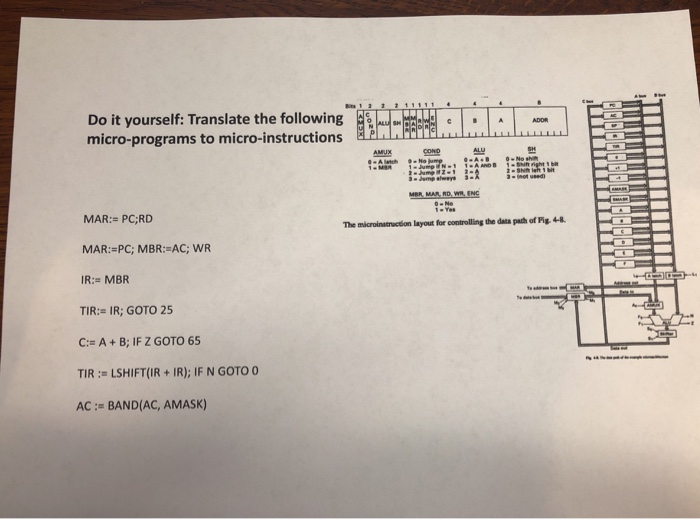

Question: Do it yourself: Translate the following micro-programs to micro-instructions cADOR 2 , bit -used MAR:= PC;RD MAR:-PC; MBR:-AC; WR IR:= MBR olling data ofFig. 4-

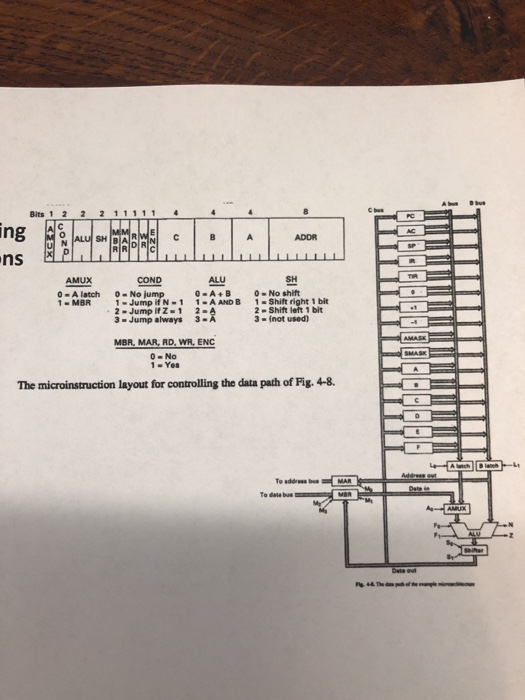

Do it yourself: Translate the following micro-programs to micro-instructions cADOR 2 , bit -used MAR:= PC;RD MAR:-PC; MBR:-AC; WR IR:= MBR olling data ofFig. 4- The microincwtion layout for c TIR: IR; GOTO 25 C: A + B; IF Z GOTO 65 TIR := LSHIFT(IR + IR); IF N GOTO 0 AC :-BAND(AC, AMASK) Do it yourself: Translate the following micro-programs to micro-instructions cADOR 2 , bit -used MAR:= PC;RD MAR:-PC; MBR:-AC; WR IR:= MBR olling data ofFig. 4- The microincwtion layout for c TIR: IR; GOTO 25 C: A + B; IF Z GOTO 65 TIR := LSHIFT(IR + IR); IF N GOTO 0 AC :-BAND(AC, AMASK)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

I am having a hard time understanding how the instructions work. Here is just a couple of the instructions that need to be dealt with. Can anyone explain to me how to find the solution to this? Here...

Using this, can you translate these? 1. MAR:= PC;RD 2. MAR:=PC; MBR:=AC; WR 3. IR:= MBR 4. TIR:= IR; GOTO 25 5. C:= A + B; IF Z GOTO 65 6. TIR := LSHIFT(IR + IR); IF N GOTO 0 7. AC := BAND(AC, AMASK)...
