Question: Draw network diagrams using the activity - in - the - box format and the activityon - the - arrow format for the following project

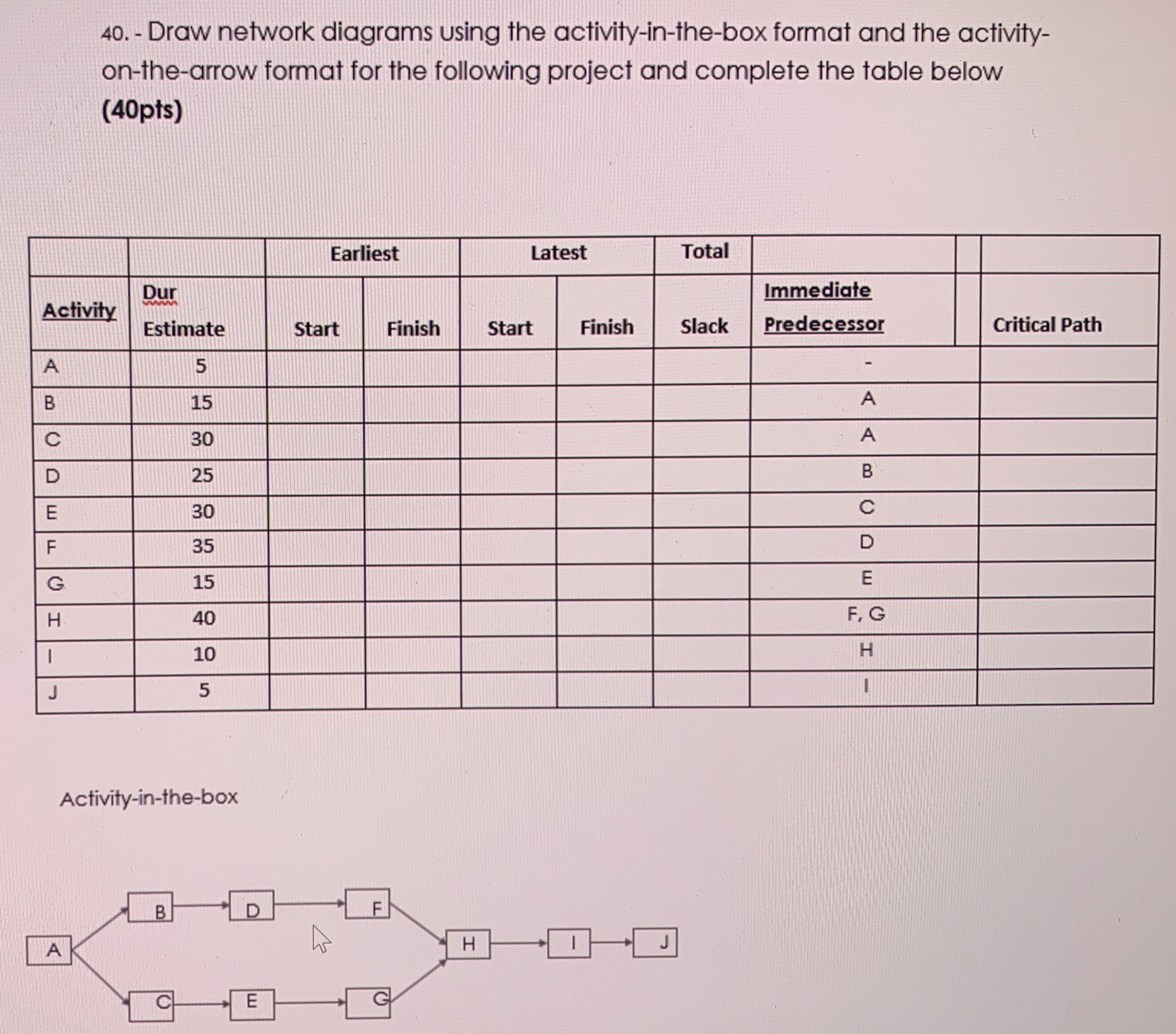

Draw network diagrams using the activity-in-the-box format and the activityon-the-arrow format for the following project and complete the table below (40pts)
\table[[Activity,\table[[Dur],[Estimate]],Earliest,Latest,\table[[Total],[Slack]],\table[[Immediate],[Predecessor]],Critical Path],[Start,Finish,Start,Finish],[A,5,,,,,,-,],[B,15,,,,,,A,],[C,30,,,,,,A,],[D,25,,,,,,B,],[E,30,,,,,,C,],[F,35,,,,,,D,],[G,15,,,,,,E,],[H,40,,,,,,F, G,],[I,10,,,,,,H,],[J,5,,,,,,I,]]
Activity-in-the-box
 Draw network diagrams using the activity-in-the-box format and the activityon-the-arrow format

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
