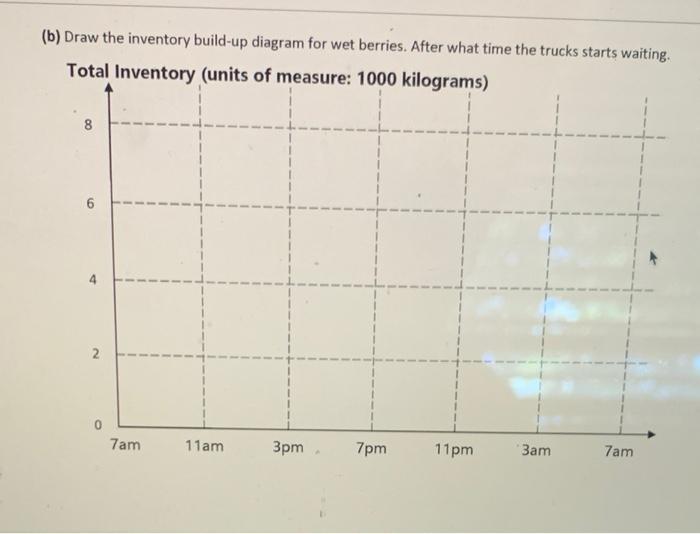

draw the graph for b.

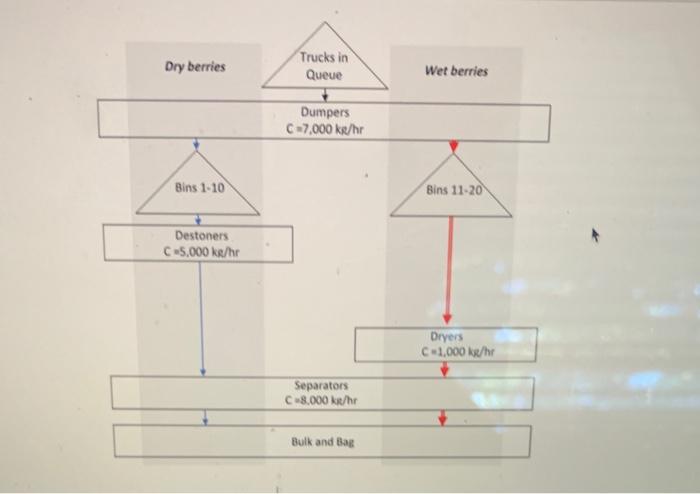

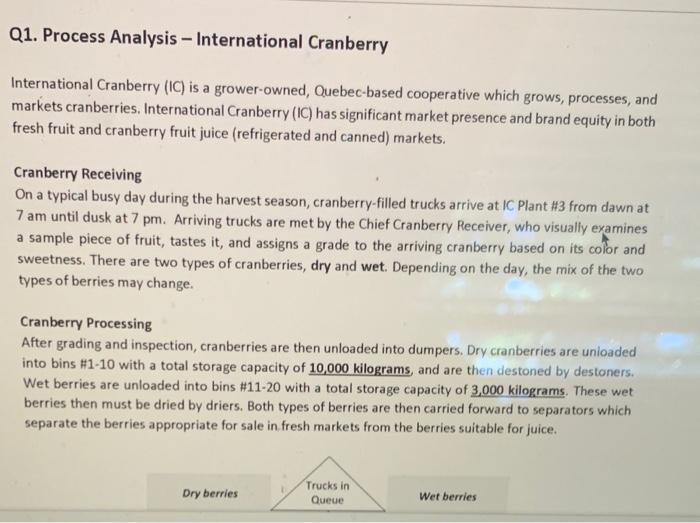

On a typical busy day, trucks arrive at the rate 10 every hour from 7:00 am to 7:00 pm. Assume that trucks arrive uniformly (i.e., no variability) and each truck carries exactly 200 kilograms of cranberries. The plant starts processing at 7:00 am (a) Assume 25% of cranberries are dry and 75% of cranberries are wet. What are the hourly throughput rates of the dry berries and the wet berries from 7 am to 7 pm? What is the bottleneck? Throughput rate (dry) Throughput rate (wet) Bottleneck (wet) Q1. Process Analysis - International Cranberry International Cranberry (IC) is a grower-owned, Quebec-based cooperative which grows, processes, and markets cranberries. International Cranberry (IC) has significant market presence and brand equity in both fresh fruit and cranberry fruit juice (refrigerated and canned) markets. Cranberry Receiving On a typical busy day during the harvest season, cranberry-filled trucks arrive at IC Plant #3 from dawn at 7 am until dusk at 7 pm. Arriving trucks are met by the Chief Cranberry Receiver, who visually examines a sample piece of fruit, tastes it, and assigns a grade to the arriving cranberry based on its color and sweetness. There are two types of cranberries, dry and wet. Depending on the day, the mix of the two types of berries may change. Cranberry Processing After grading and inspection, cranberries are then unloaded into dumpers, Dry cranberries are unloaded into bins #1-10 with a total storage capacity of 10,000 kilograms, and are then destoned by destoners. Wet berries are unloaded into bins #11-20 with a total storage capacity of 3,000 kilograms. These wet berries then must be dried by driers. Both types of berries are then carried forward to separators which separate the berries appropriate for sale in fresh markets from the berries suitable for juice. Dry berries Trucks in Queue Wet berries Dry berries Trucks in Queue Wet berries Dumpers C -7.000 kr/hr Bins 1-10 Bins 11-20 Destoners C 5,000 kg/hr Dryers C1,000 kw/ht Separators C-8.000 kr/hr Bulk and Bag (b) Draw the inventory build-up diagram for wet berries. After what time the trucks starts waiting. Total Inventory (units of measure: 1000 kilograms) 8 6 4 2 0 7am 11am 3pm 7pm 11pm am 7am
