Question: draw the network diagram using arrow AOA ? calculate ES, EF, LS, LF and slack for each activity? identify critical path for these activities? A

draw the network diagram using arrow AOA ?

calculate ES, EF, LS, LF and slack for each activity?

identify critical path for these activities?

draw the network diagram using arrow AOA ?

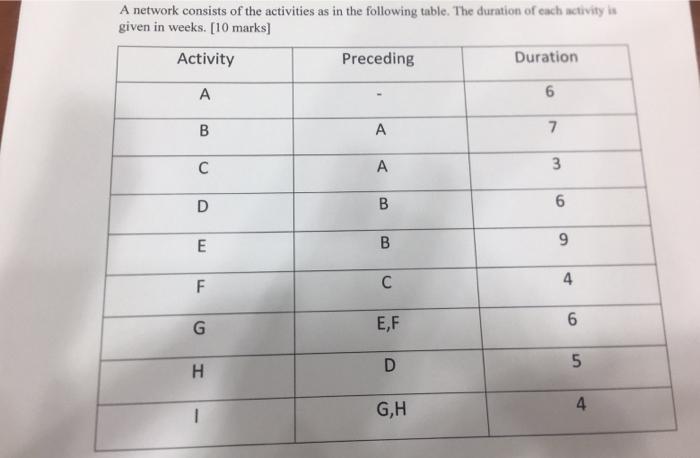

A network consists of the activities as in the following table. The duration of each activity is given in weeks. [10 marks] Activity Preceding Duration A 6 B A A 7 A 3 D B 6 E B 9 F 4 G E,F 6 5 H D GH 4
