Question: Draw the node network, perform the CPM calculations, mark the critical path, and complete the table below with an imposed finish date of 3 5

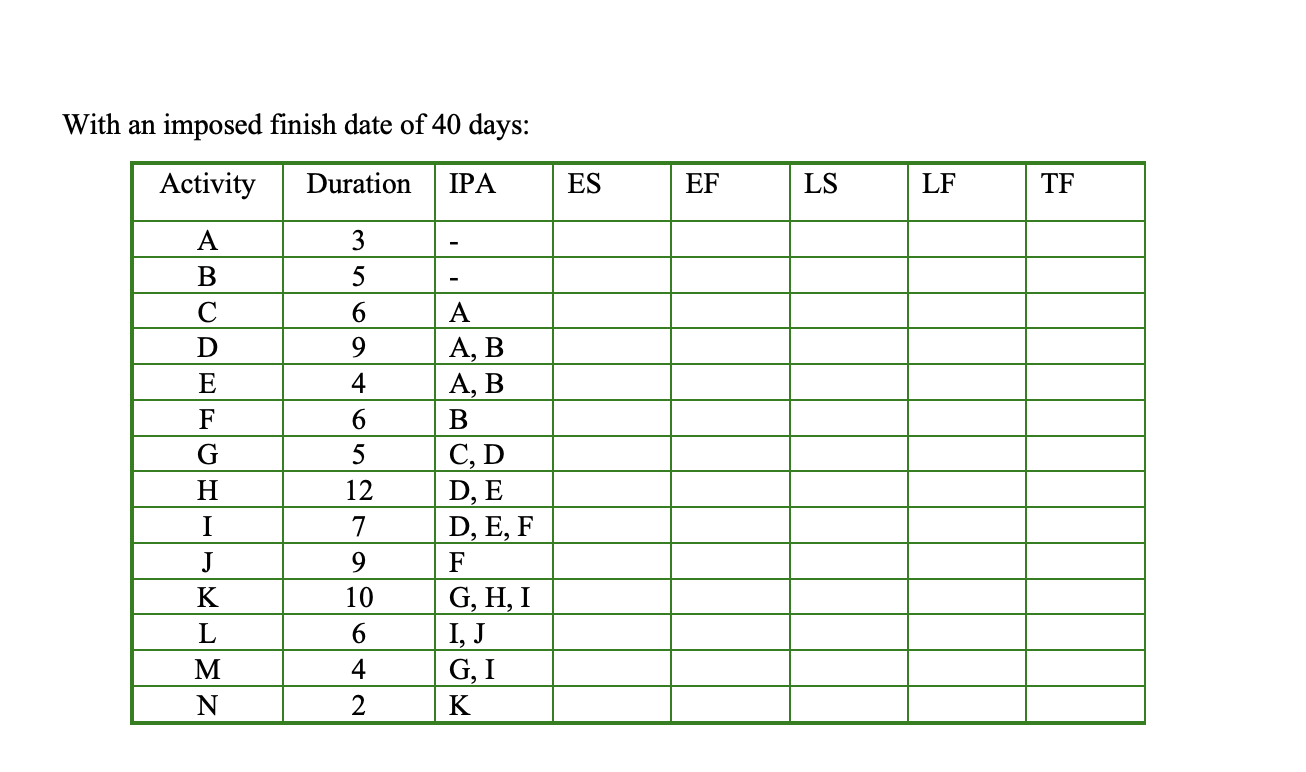

Draw the node network, perform the CPM calculations, mark the critical path, and complete the table below with an imposed finish date of 35 and then 40 days. With an imposed finish date of 40 days:
\begin{tabular}{|c|c|l|l|l|l|l|l|}
\hline Activity & Duration & IPA & ES & EF & LS & LF & TF \\
\hline A & 3 & - & & & & & \\
\hline B & 5 & - & & & & & \\
\hline C & 6 & A & & & & & \\
\hline D & 9 & A, B & & & & & \\
\hline E & 4 & A, B & & & & & \\
\hline F & 6 & B & & & & & \\
\hline G & 5 & C, D & & & & & \\
\hline H & 12 & D, E & & & & & \\
\hline I & 7 & D, E, F & & & & & \\
\hline J & 9 & F & & & & & \\
\hline K & 10 & G, H, I & & & & & \\
\hline L & 6 & I, J & & & & & \\
\hline M & 4 & G, I & & & & & \\
\hline N & 2 & K & & & & & \\
\hline
\end{tabular}
Draw the node network, perform the CPM
