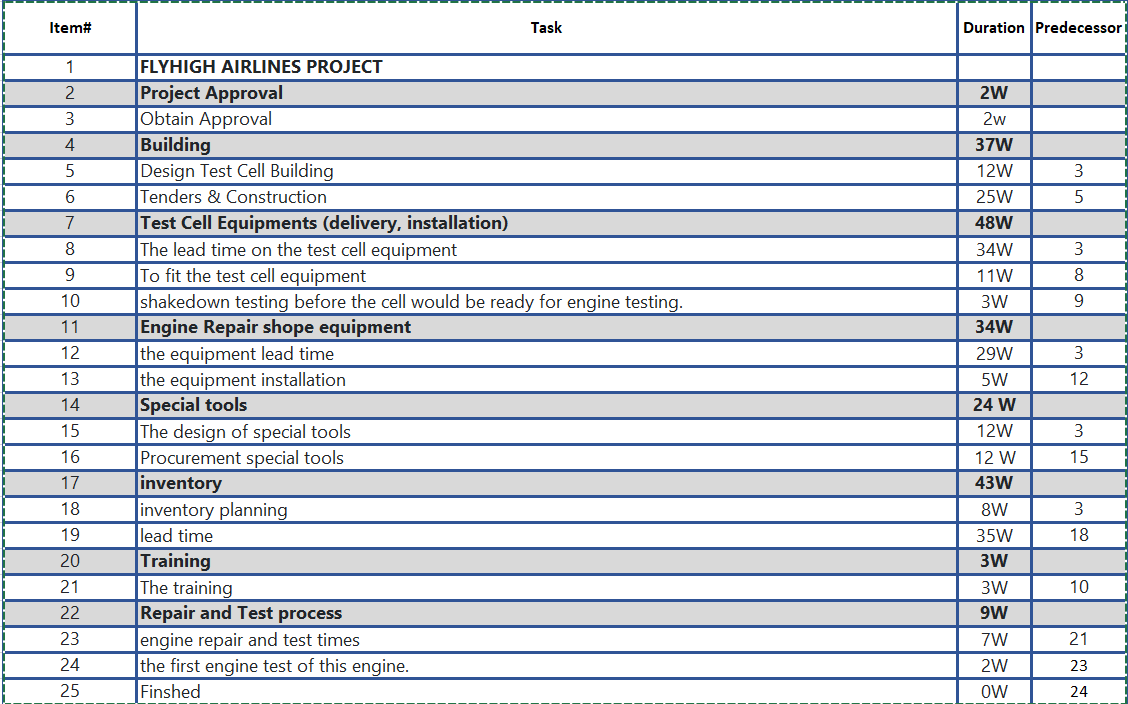

Question: Draw the schedule AON activity on node network format. for the below project Schedule : analyze the network using the manual method to determine ES,

Draw the schedule AON "activity on node" network format. for the belowproject Schedule:

  • analyze the network using the manual method to determine ES, LS, EF, LF;
  • calculate float for each activity; and
  • identify the critical path.

project Schedule:

Draw the schedule AON "activity on node" network format. for the belowproject
