Early functional design activities often include study and decomposition of products from existing implementations, such as customer contacts and invoices.

So practice a few skills of a systems analyst, to produce the beginnings of a data store functional design you could imagine validating with experts or practitioners in the related domain and focus of interest.

Specifically:

• Elicit requirements from the functional design source samples provided:

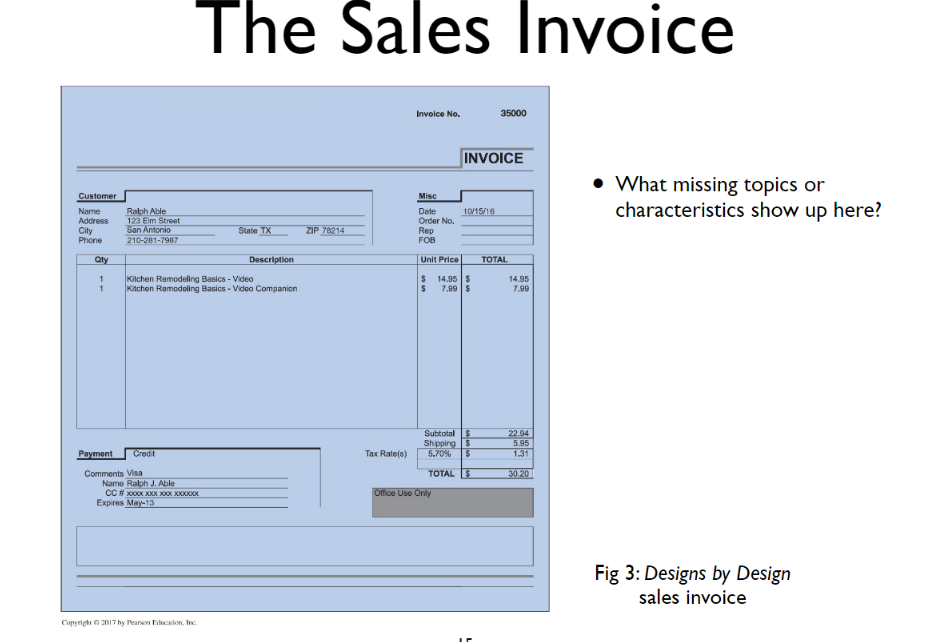

  • customer list, registration confirmation, and invoicethree separate sources to study to in order)
• Based on requirements evident from each source in order, compose by hand a page of functional design elements, including an ERD and annotations:
  • Produce three separate pages of functional design, each a refinement of the prior to include new design element
• Write your full name to each design page

Scan or picture each design page.

SOURCE SAMPLES:

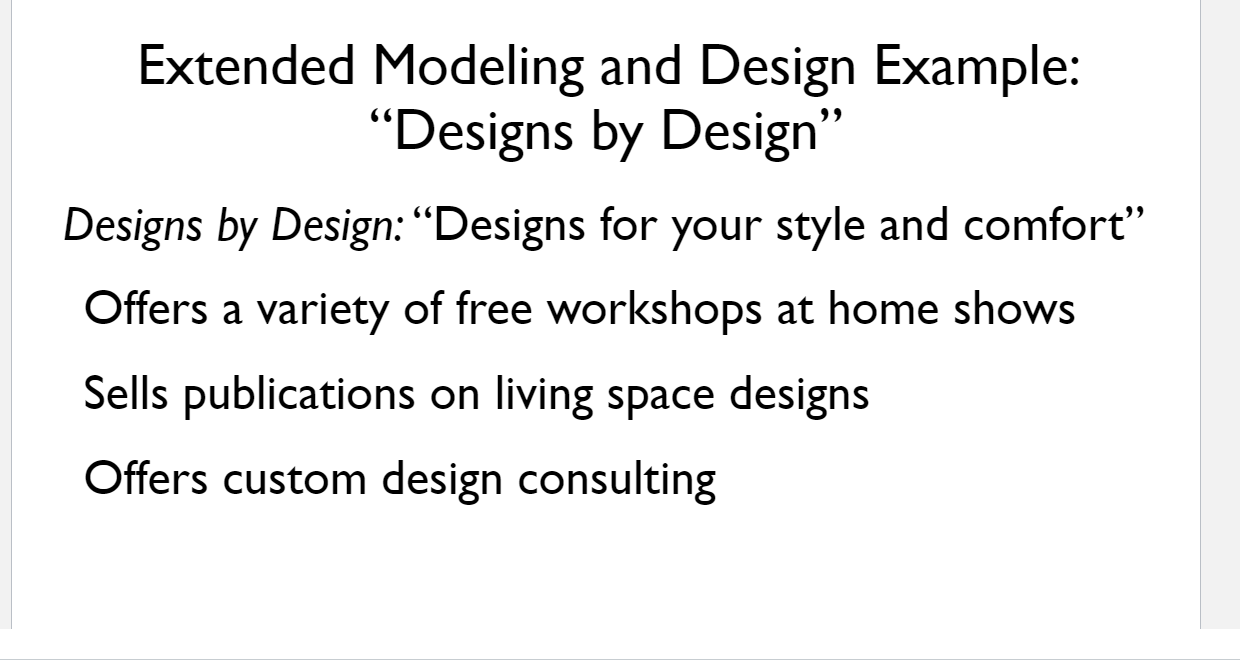

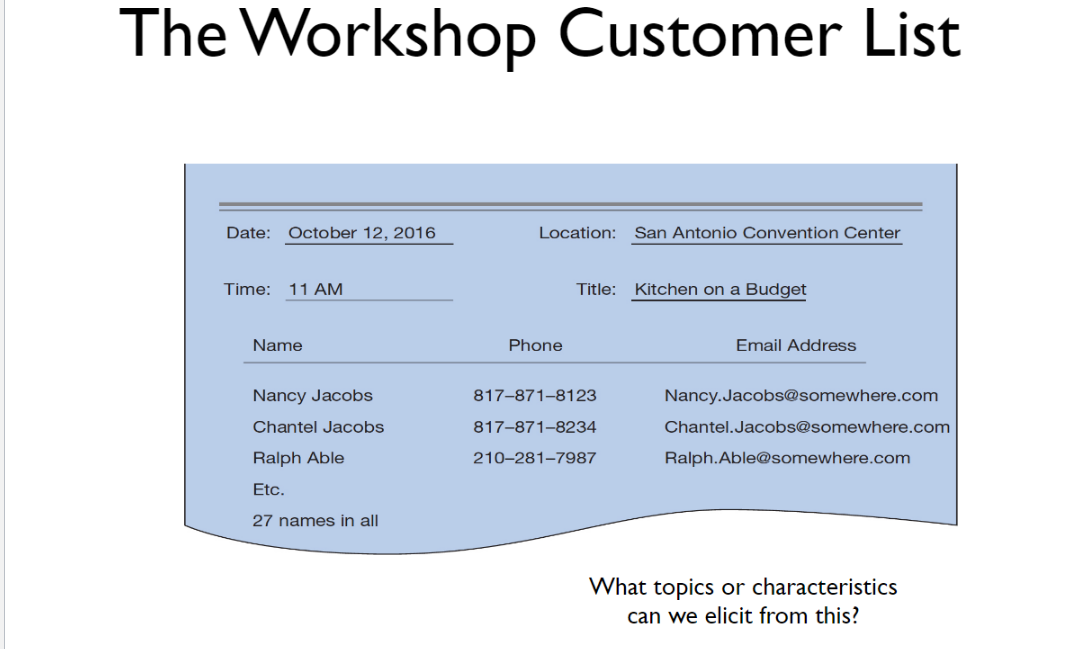

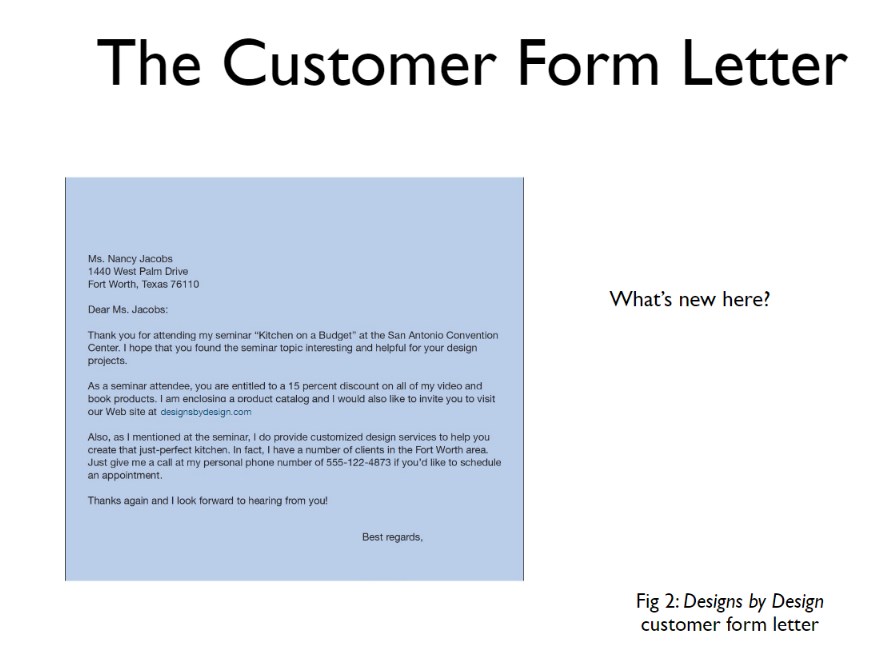

Extended Modeling and Design Example: Designs by Design Designs by Design: Designs for your style and comfort Offers a variety of free workshops at home shows Sells publications on living space designs Offers custom design consulting The Workshop Customer List Date: October 12, 2016 Location: San Antonio Convention Center Time: 11 AM Title: Kitchen on a Budget Name Phone Email Address Nancy Jacobs 817-871-8123 Nancy.Jacobs@somewhere.com 817-871-8234 Chantel.Jacobs@somewhere.com Chantel Jacobs Ralph Able Etc. 210-281-7987 Ralph. Able@somewhere.com 27 names in all What topics or characteristics can we elicit from this? The Customer Form Letter Ms. Nancy Jacobs 1440 West Palm Drive Fort Worth, Texas 76110 What's new here? Dear Ms. Jacobs: Thank you for attending my seminar "Kitchen on a Budget" at the San Antonio Convention Center. I hope that you found the seminar topic interesting and helpful for your design projects. As a seminar attendee, you are entitled to a 15 percent discount on all of my video and book products. I am enclosing a product catalog and I would also like to invite you to visit our Web site at designsbydesign.com Also, as I mentioned at the seminar, I do provide customized design services to you create that just-perfect kitchen. In fact, I have a number of clients in the Fort Worth area. Just give me a call at my personal phone number of 555-122-4873 if you'd like to schedule an appointment Thanks again and I look forward to hearing from you! Best regards, Fig 2: Designs by Design customer form letter The Sales Invoice Invoice No. 35000 INVOICE Misc What missing topics or characteristics show up here? Customer Name Address City Phone 10/15/16 Raloh Able 123 Elm Street San Antonio 210-281-7987 Date Order No. State TX ZIP 78214 Rep FOB Qty Unit Price TOTAL 1 Description Kitchen Remodeling Basics - Video Kitchen Remodeling Basics - Video Companion 1 S $ 14.95$ 7,99 $ 14.95 7.99 Subtotal 5 Shipping 5.70% $ 22.94 5.95 1:31 Payment Credit Tax Rates) TOTALE 30 20 Comments Visa Name Ralph J. Able CC# XOX XXX XX XXXX Expires May-13 Office Use Only Fig 3: Designs by Design sales invoice Copyright 2017 hy are the Extended Modeling and Design Example: Designs by Design Designs by Design: Designs for your style and comfort Offers a variety of free workshops at home shows Sells publications on living space designs Offers custom design consulting The Workshop Customer List Date: October 12, 2016 Location: San Antonio Convention Center Time: 11 AM Title: Kitchen on a Budget Name Phone Email Address Nancy Jacobs 817-871-8123 Nancy.Jacobs@somewhere.com 817-871-8234 Chantel.Jacobs@somewhere.com Chantel Jacobs Ralph Able Etc. 210-281-7987 Ralph. Able@somewhere.com 27 names in all What topics or characteristics can we elicit from this? The Customer Form Letter Ms. Nancy Jacobs 1440 West Palm Drive Fort Worth, Texas 76110 What's new here? Dear Ms. Jacobs: Thank you for attending my seminar "Kitchen on a Budget" at the San Antonio Convention Center. I hope that you found the seminar topic interesting and helpful for your design projects. As a seminar attendee, you are entitled to a 15 percent discount on all of my video and book products. I am enclosing a product catalog and I would also like to invite you to visit our Web site at designsbydesign.com Also, as I mentioned at the seminar, I do provide customized design services to you create that just-perfect kitchen. In fact, I have a number of clients in the Fort Worth area. Just give me a call at my personal phone number of 555-122-4873 if you'd like to schedule an appointment Thanks again and I look forward to hearing from you! Best regards, Fig 2: Designs by Design customer form letter The Sales Invoice Invoice No. 35000 INVOICE Misc What missing topics or characteristics show up here? Customer Name Address City Phone 10/15/16 Raloh Able 123 Elm Street San Antonio 210-281-7987 Date Order No. State TX ZIP 78214 Rep FOB Qty Unit Price TOTAL 1 Description Kitchen Remodeling Basics - Video Kitchen Remodeling Basics - Video Companion 1 S $ 14.95$ 7,99 $ 14.95 7.99 Subtotal 5 Shipping 5.70% $ 22.94 5.95 1:31 Payment Credit Tax Rates) TOTALE 30 20 Comments Visa Name Ralph J. Able CC# XOX XXX XX XXXX Expires May-13 Office Use Only Fig 3: Designs by Design sales invoice Copyright 2017 hy are the
