ELT$-134$

Lab $10$ Data Compare and Math

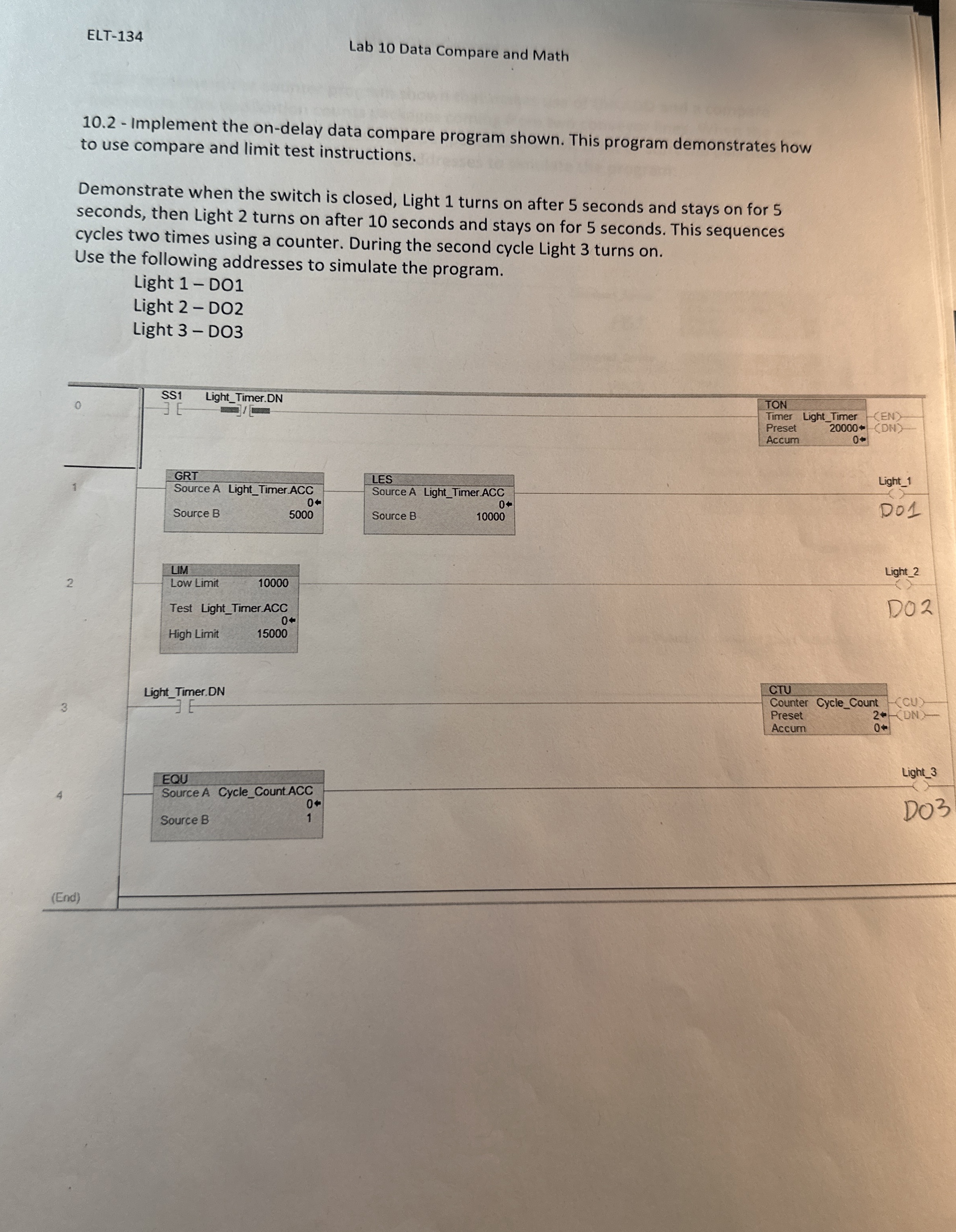

$10\mathrm{.}2-$ Implement the on$-$delay data compare program shown. This program demonstrates how to use compare and limit test instructions.

Demonstrate when the switch is closed, Light $1$ turns on after $5$ seconds and stays on for $5$ seconds, then Light $2$ turns on after $10$ seconds and stays on for $5$ seconds. This sequences cycles two times using a counter. During the second cycle Light $3$ turns on$.$

Use the following addresses to simulate the program.

Light $1-$ DO$1$

Light $2-$ DO$2$

Light $3-$ DO$3$
