Question: EM A model for circuits 102 3. The circuit shown has four identical light bulbs and an ideal battery. Rank the bulbs according to brightness.

EM A model for circuits 102 3. The circuit shown has

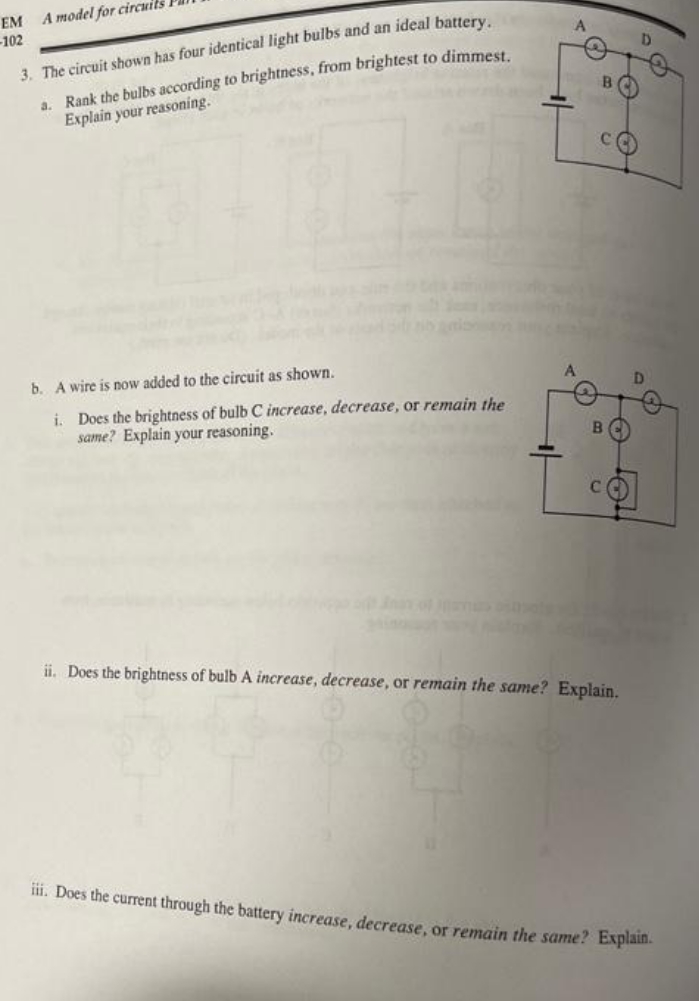

EM A model for circuits 102 3. The circuit shown has four identical light bulbs and an ideal battery. Rank the bulbs according to brightness. from brightest to dimmest. a. Explain your reasoning. B b. A wire is now added to the circuit as shown. i. Does the brightness of bulb C increase, decrease, or remain the same? Explain your reasoning. ii. Does the brightness of bulb A increase, decrease, or remain the same? Explain. fil. Does the current through the battery increase, decrease, or remain the same? Explain

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

1. The circuit shown has four identical light bulbs and an ideal battery. A. Rank the bulbs according to brightness, from brightest to dimmest. Explain your reasoning. B. A wire is now added to the...

EM A model for circuits Part 3: Multiple batteries TellUs On HOOMA HW-26 . Consider the circuit shown at right, which is a variant of circuit IX from the tutorial. All bulbs are identical, and all...

A model for circuits Part 3: Multiple batteries EM Consider the following incorrect predictions about the behavior of the circuit 1. 41 Student 1 : "Bulbs la lbs la and 1b are in parallel branches....

EM 40 A model for circuits Part 3: Multiple batteries THAT eTIUPSHIS SION HCIOMA D. Use your observations thus far to devise a rule that relates the potential difference across a network of batteries...

Item 1 Consider five identical light bulbs connected to a battery as shown in each of the identical circuits below in Part A. Part A Rank the brightness of all five bulbs (A-E) from brightess to...

EM A model for circuits Part 1: Current and resistance HW-92 3. The circuit shown has four identical light bulbs and an ideal battery. a. Rank the brightness of the bulbs. Explain your reasoning. b....
