Question: Example 2_CPM Given the information in the following table Activity Duration Predecessors - 2 None 3 None a,b - 3 g 5 de h 2

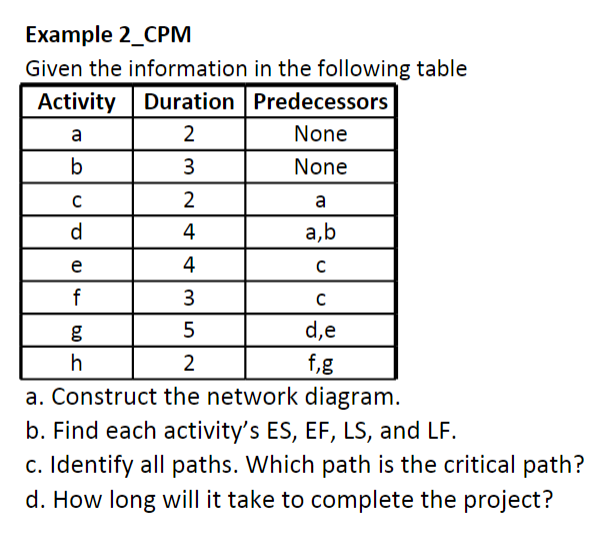

Example 2_CPM Given the information in the following table Activity Duration Predecessors - 2 None 3 None a,b - 3 g 5 de h 2 f,g a. Construct the network diagram. b. Find each activity's ES, EF, LS, and LF. c. Identify all paths. Which path is the critical path? d. How long will it take to complete the project

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
