Exercise $3\mathrm{.}21$ Model the following business process. Use pools and lanes where needed.When a claim is received, a claims officer first checks if the claimant is insured. If not, the claimant is informed that the claim must be rejected by sending an automatic notification via an SAP system. Otherwise, a senior claims officer evaluates the severity of the claim. Based on the outcome $($simple or complex claims$),$ the relevant forms are sent to the claimant, again using the SAP system. Once the forms are returned, they are checked for completeness by the claims officer. If the forms provide all relevant details, the claim is registered in the claims management system, and the process ends. Otherwise, the claimant is informed to update the forms via the SAP system. Upon reception of the updated forms, they are checked again by the claims officer to see if the details have been provided.Exercise $5\mathrm{.}27$ Consider the model in Figure $5\mathrm{.}25$ with reference to the process for handling claims described in Exercise $3\mathrm{.}21.$ Is this model valid and complete? If not, what statements are invalid and what is missing?

$210$

$5$ Process Discovery

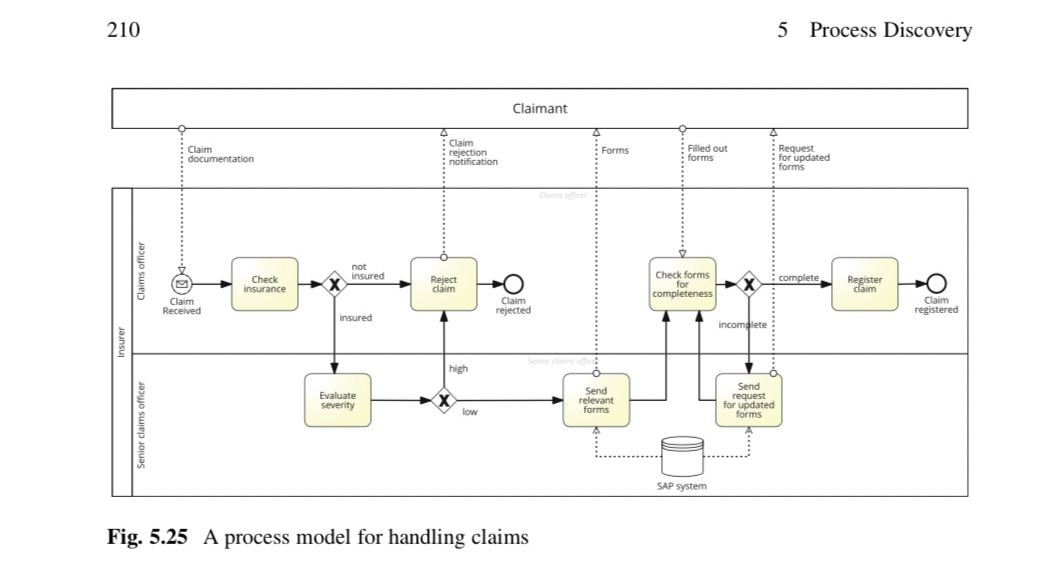

Fig. $5\mathrm{.}25$ A process model for handling claims
